ADM708SARZ-REEL Microprocessor Supervisory Circuits

The ADM708SARZ-REEL is a state-of-the-art supervisory circuit designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This device is engineered to monitor power supplies and microprocessor activity in digital systems, providing essential protection and ensuring reliable operation.

Key Features:

• Power Supply Monitoring: The ADM708SARZ-REEL vigilantly monitors the system's power supply voltage. It generates a reset signal to the microprocessor during power-up, power-down, and brown-out conditions, ensuring the system starts up in a known state every time.
• Manual Reset Input: A dedicated manual reset input allows for a system reset to be triggered with an external push-button or logic signal, providing additional control to the user or system administrator.
• Watchdog Timer: The built-in watchdog timer keeps the microprocessor running smoothly. If the microprocessor fails to stroke the watchdog within a preset timeout period, the device will issue a reset signal, thus safeguarding against system hangs or malfunctions.
• Low Power Consumption: With its focus on energy efficiency, the ADM708SARZ-REEL is designed to consume minimal power, making it ideal for portable and battery-operated applications.
• Reset Output Stages: The device features an active-low reset output, providing a reliable reset signal to the system when necessary.

Applications:

• Computers and Servers
• Embedded Systems
• Portable/Battery-Powered Equipment
• Industrial Control Systems
• Communication Equipment

Product Specifications:

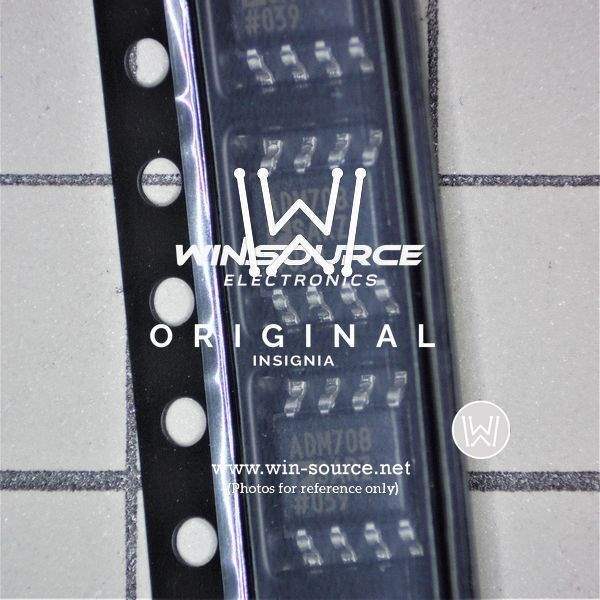

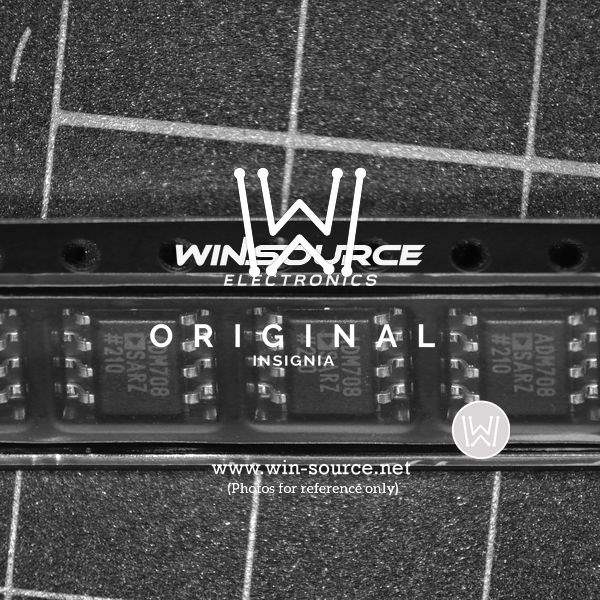

The ADM708SARZ-REEL is supplied in a compact surface-mount package, suitable for automated assembly processes. It is part of a tape and reel packaging, which facilitates efficient handling and manufacturing. The device operates over a wide temperature range, making it versatile for various environments and applications.

With its robust feature set and Analog Devices Inc.'s reputation for quality, the ADM708SARZ-REEL is an excellent choice for designers looking to enhance system reliability and performance. Whether it's for critical industrial applications or everyday consumer electronics, this supervisory circuit provides the necessary oversight to keep digital systems functioning optimally.
