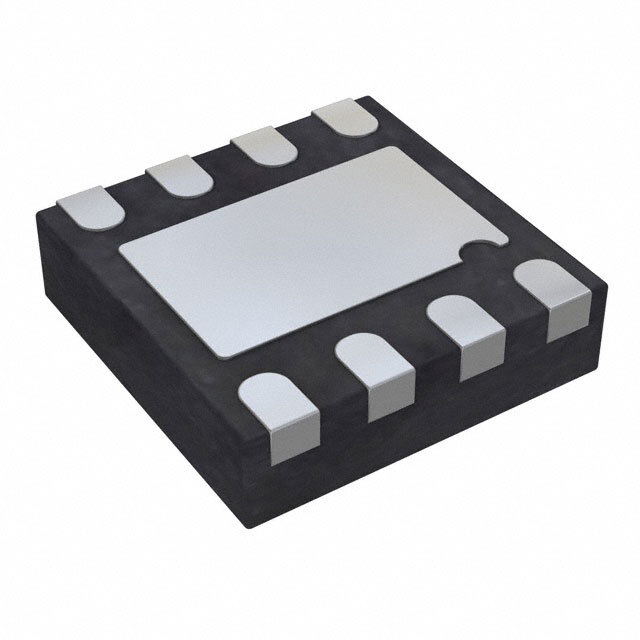

ADM7171ACPZ-R7

Part No ADM7171ACPZ-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN POS ADJ 1A 8LFCSP / Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-LFCSP-WD (3x3)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 1.2V
Voltage - Output (Max) 6.365V
Voltage Dropout (Max) 0.135V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 2 mA
Current - Supply (Max) 6.3 mA
PSRR 60db ~ 20dB (100kHz ~ 1MHz)
Control Features Enable, Soft Start
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-WFDFN Exposed Pad, CSP
Supplier Device Package 8-LFCSP-WD (3x3)
Base Product Number ADM7171
Standard Package 1,500 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 845256-ADM7171ACPZ-R7
Ultra Librarian 3D Model Ultra Librarian ADM7171ACPZ-R7 CAD Model

Description

ADM7171ACPZ-R7: Ultra-Low Noise, High PSRR, RF Linear Regulator

The ADM7171ACPZ-R7 is a state-of-the-art linear voltage regulator from Analog Devices Inc., designed to deliver exceptional performance for noise-sensitive applications in RF and analog circuits. This regulator stands out for its ultra-low noise output and high power supply rejection ratio (PSRR), making it an ideal choice for systems that require a clean and stable power supply.

Key Features

  • Ultra-Low Noise: With an output noise as low as 1.6 µV RMS over a 10 Hz to 100 kHz bandwidth, the ADM7171ACPZ-R7 ensures minimal interference in sensitive signal processing applications.
  • High PSRR: The device boasts an impressive PSRR of 80 dB at 10 kHz, providing excellent power supply noise rejection and enhancing overall system performance.
  • Wide Input Voltage Range: It operates over a broad input voltage range from 4.5 V to 16 V, offering flexibility in various power supply configurations.
  • Adjustable Output Voltage: The output voltage can be adjusted from 1.2 V to 5.5 V, accommodating a wide array of voltage requirements for different components.
  • High Output Current: Capable of delivering up to 500 mA of output current, this regulator can power a diverse set of devices including high-speed analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other precision ICs.
  • Thermal Overload Protection: The ADM7171ACPZ-R7 includes built-in thermal overload protection, safeguarding the device from damage due to overheating.
  • Small Footprint: Housed in a compact 8-lead LFCSP package, the device is suitable for space-constrained applications.

Applications

Due to its exceptional noise performance and robust power delivery, the ADM7171ACPZ-R7 is well-suited for a variety of applications, including:

  • RF and IF amplifiers
  • PLLs, VCOs, and clock distribution circuits
  • High-speed and high-resolution ADCs and DACs
  • Medical and healthcare instrumentation
  • Sensitive communication infrastructure
  • Portable and battery-powered equipment

This product from Analog Devices Inc. represents a blend of performance, versatility, and reliability, ensuring that sensitive electronic systems operate with the highest level of precision and stability.
