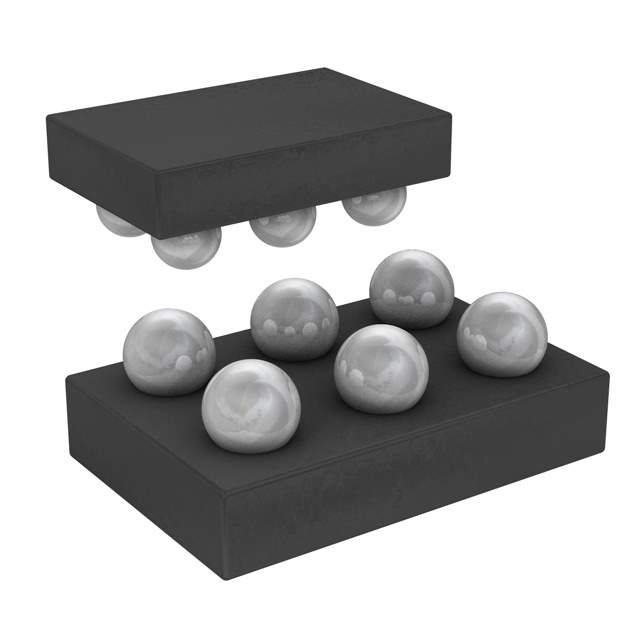

ADM8612N110ACBZ-R7

Part No ADM8612N110ACBZ-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Supervisors
Description IC SUPERVISOR 1 CHANNEL 6WLCSP / Supervisor Open Drain or Open Collector 1 Channel 6-WLCSP (0.96x1.46)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Supervisors
Mfr Analog Devices Inc.
Package Tape & Reel
Type Simple Reset/Power-On Reset
Number of Voltages Monitored 1
Voltage - Threshold 1.1V
Output Open Drain or Open Collector
Reset Active Low
Reset Timeout 200ms Typical
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 6-WFBGA, WLCSP
Supplier Device Package 6-WLCSP (0.96x1.46)
Base Product Number ADM8612
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ADM8612N110ACBZ-R7CT,ADM8612N110ACBZ-R7TR,ADM8612N110ACBZ-R7DKR,-2735-ADM8612N110ACBZ-R7CT
Standard Package 3,000
Win Source Part Number 1139475-ADM8612N110ACBZ-R7
Ultra Librarian 3D Model Ultra Librarian ADM8612N110ACBZ-R7 CAD Model

Description

The ADM8612N110ACBZ-R7 is a cutting-edge supervisory circuit manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This component is specifically designed to monitor power supplies in digital systems and ensure proper system reset. It provides a reliable solution for managing system power-up and power-down sequences, which is critical for maintaining the integrity and reliability of electronic systems.

Key Features

  • Voltage Monitoring: This device is adept at monitoring the voltage threshold levels to safeguard the system against undervoltage conditions, which could lead to system instability or failure.
  • Reset Output: The ADM8612N110ACBZ-R7 provides an active-low reset output, which remains asserted until the monitored voltage reaches the factory-programmed threshold, ensuring the system is reset reliably.
  • Low Power Consumption: Designed with power efficiency in mind, this supervisory circuit operates with very low power consumption, making it ideal for use in portable and battery-operated devices.
  • High Accuracy: The precision voltage monitoring ensures high accuracy, which is crucial for sensitive applications where voltage levels must be maintained within tight tolerances.
  • Compact Package: Housed in a compact package, the ADM8612N110ACBZ-R7 is suitable for space-constrained applications, providing robust functionality without occupying significant board space.

Applications

The ADM8612N110ACBZ-R7 is versatile and can be employed in a wide array of applications, including:

  • Microprocessor/ Microcontroller systems
  • Portable and battery-powered equipment
  • Industrial control systems
  • Computers and servers
  • Communication infrastructure

Technical Specifications

Parameter Value
Threshold Voltage Factory-programmed
Output Type Active-low reset
Operating Temperature -40°C to +85°C
Package / Case Compact
Mounting Type Surface Mount

With its robust feature set and the reputation of Analog Devices for quality and reliability, the ADM8612N110ACBZ-R7 is an excellent choice for system designers looking to enhance system stability and performance.
