Product Overview: ADN2855ACPZ by Analog Devices Inc.

The ADN2855ACPZ from Analog Devices Inc. is a high-performance Continuous Rate Clock and Data Recovery (CDR) with an integrated Limiting Amplifier. It is designed to operate over a wide range of data rates, making it a versatile choice for various applications, including optical networks, data communication, and high-speed telecommunication systems.

Key Features

• Adjustable Data Rate: The device supports a wide range of data rates from 6.5 Gbps to 11.3 Gbps, making it suitable for a variety of protocols and applications.
• Integrated Limiting Amplifier: The built-in limiting amplifier with programmable output amplitude ensures optimal signal conditioning for improved signal integrity.
• Loss of Signal Detection: The ADN2855ACPZ is equipped with a loss of signal (LOS) detection feature that provides a reliable indication of signal presence and quality.
• Low Power Consumption: Engineered for efficiency, the device operates with low power consumption, which is critical for thermal management and energy savings in dense system designs.
• Reference-Free Operation: This CDR does not require an external reference clock for operation, simplifying the design and reducing system complexity.
• Programmable Loop Bandwidth: The flexibility to adjust the loop bandwidth allows optimization for different system requirements and noise environments.

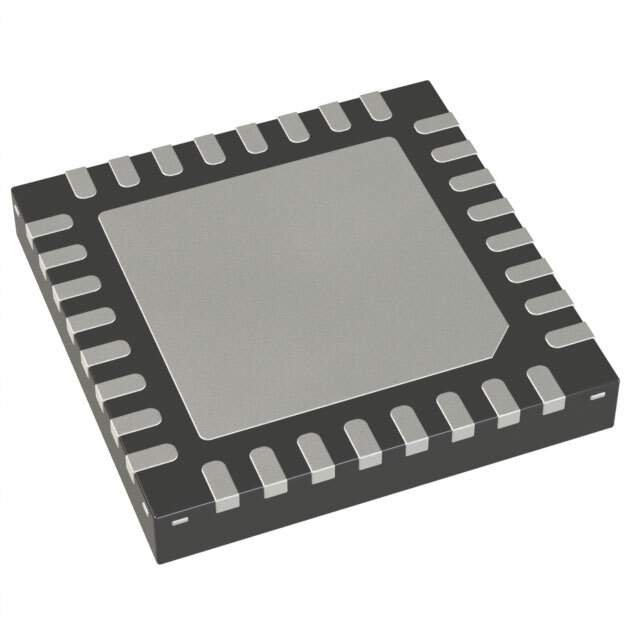

• Compact Package: Housed in a compact 32-lead LFCSP (Lead Frame Chip Scale Package), the ADN2855ACPZ is ideal for space-constrained applications.

Applications

The ADN2855ACPZ is well-suited for a variety of high-speed communication applications, including:

• Optical Network Equipment
• Fiber Channel Systems
• SONET/SDH Equipment
• High-Speed Data Acquisition Systems
• Backplane and Cable Data Communication

Analog Devices Inc. is known for its commitment to high-quality and reliable semiconductor products, and the ADN2855ACPZ is no exception. With its robust feature set and flexible design, it stands as an excellent choice for system designers looking to enhance performance and maintain signal integrity in high-speed data environments.
