ADP122ACPZ-1.8-R7 - Low Dropout Linear Regulator

The ADP122ACPZ-1.8-R7 is a high-performance, low dropout linear regulator from Analog Devices Inc. that delivers a fixed output voltage of 1.8V. This component is designed to provide up to 300 mA of output current while maintaining excellent power supply rejection ratio (PSRR) and low noise characteristics, making it ideal for sensitive analog and RF applications.

Key Features:

• Fixed Output Voltage: The device offers a stable 1.8V output, which is critical for consistent performance in precision applications.
• High Output Current: Capable of delivering up to 300 mA, this LDO can power a wide range of devices, from microcontrollers to RF circuits.
• Low Dropout: With a low dropout voltage, the ADP122ACPZ-1.8-R7 can operate efficiently even when the input-to-output differential is minimal, thereby preserving battery life in portable applications.
• Excellent PSRR: Its high power supply rejection ratio ensures that variations in the input voltage do not affect the output, providing a clean and stable voltage for sensitive components.
• Low Noise: This regulator is designed to minimize noise, a crucial feature for precision analog circuits and noise-sensitive applications like audio or RF systems.
• Thermal Protection: The device includes built-in thermal overload protection that safeguards it from damage due to excessive power dissipation or high ambient temperatures.

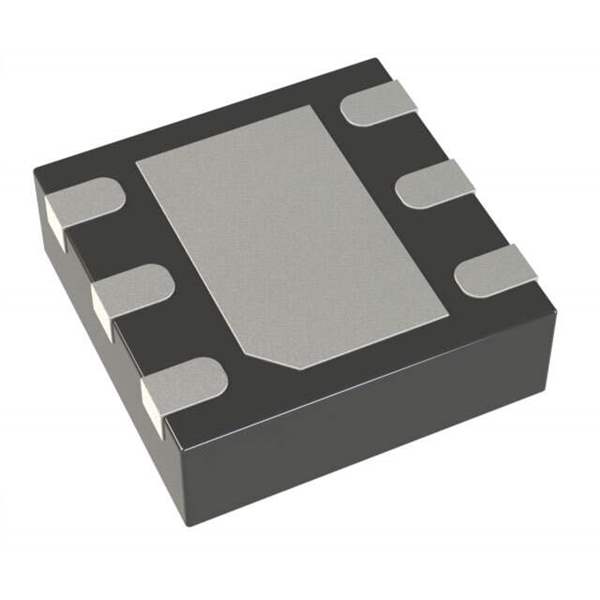

• Small Footprint: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the ADP122ACPZ-1.8-R7 is suitable for space-constrained applications.

Applications:

The ADP122ACPZ-1.8-R7 is versatile and can be used in various applications, including but not limited to:

• Portable and battery-powered devices
• Wireless and RF systems
• Data acquisition systems
• Medical devices
• Microprocessor/Microcontroller power supplies

With its combination of features, the ADP122ACPZ-1.8-R7 from Analog Devices Inc. is an excellent choice for designers looking for a reliable and efficient voltage regulator to maintain a clean power supply in their electronic designs.
