ADP1712AUJZ-2.5-R7 - Low Dropout Linear Regulator by Analog Devices Inc.

The ADP1712AUJZ-2.5-R7 from Analog Devices Inc. is a high-performance, low dropout linear regulator designed to provide a regulated output voltage of 2.5V with an input voltage range from 2.7V to 5.5V. This regulator is particularly well-suited for portable and battery-powered applications due to its low quiescent current and high efficiency over a wide range of load currents.

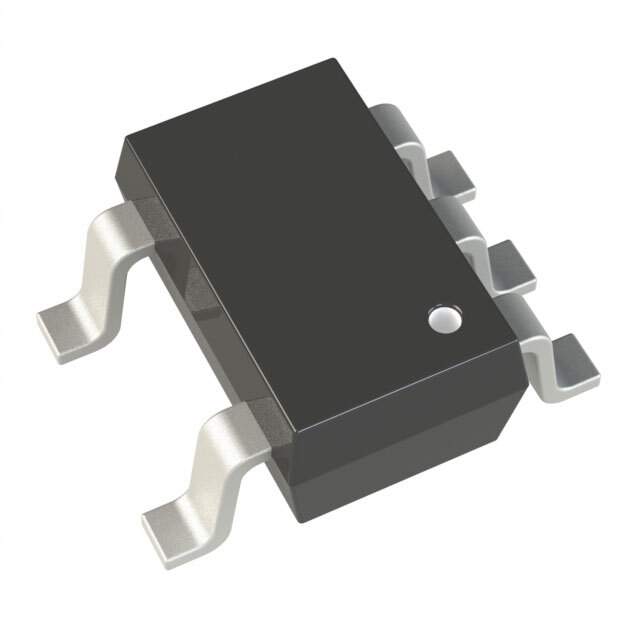

Encased in a compact TSOT-5 package, the ADP1712AUJZ-2.5-R7 offers excellent thermal performance and a minimal footprint on the PCB, making it an ideal choice for space-constrained applications. The device is capable of delivering up to 300mA of continuous output current, which is sufficient for a variety of low-power devices such as microcontrollers, sensors, and RF circuits.

One of the key features of this regulator is its low dropout voltage, which ensures that the output is well regulated even when the input voltage is very close to the output voltage, thus maximizing battery life. The ADP1712AUJZ-2.5-R7 also includes a range of protective features, such as over-current protection, thermal overload protection, and reverse battery protection, which safeguards the device and the load from various fault conditions.

Furthermore, the regulator's low quiescent current of just 11μA (typical) during operation makes it an excellent choice for battery-powered applications where extending battery life is crucial. In shutdown mode, the quiescent current drops to less than 1μA, further conserving energy when the device is not in active use.

The ADP1712AUJZ-2.5-R7 also offers the flexibility of an adjustable output version via an external resistor divider, allowing designers to set the output voltage to a specific value required by the application. This feature, combined with its stable operation with small ceramic output capacitors, makes it a versatile choice for a wide range of design requirements.

In summary, the ADP1712AUJZ-2.5-R7 from Analog Devices Inc. is a reliable and efficient solution for applications requiring a fixed 2.5V output with low dropout, low quiescent current, and a high degree of protection against abnormal operating conditions.
