ADP1741ACPZ-R7: High-Performance, Low-Dropout Linear Regulator

The ADP1741ACPZ-R7 is a state-of-the-art low-dropout linear regulator (LDO) designed and manufactured by Analog Devices Inc., a leading global high-performance analog technology company. This LDO is part of their extensive portfolio of power management solutions, renowned for their reliability and efficiency.

With a wide input voltage range from 1.7 V to 3.6 V, the ADP1741ACPZ-R7 is highly versatile, catering to a diverse array of applications. It offers a maximum output current of 1 A, making it suitable for powering core voltages of most FPGAs, DSPs, and other digital ICs that require a stable and clean power supply.

The device features an adjustable output voltage from 0.6 V to the input voltage minus the dropout voltage, providing designers with the flexibility to tailor the power supply to their specific needs. The low dropout voltage helps to maintain regulation even when the supply voltage is very close to the output voltage, enhancing the efficiency of the system.

One of the key advantages of the ADP1741ACPZ-R7 is its low quiescent current, which significantly reduces power consumption in both active and shutdown modes, making it an excellent choice for battery-powered devices where power efficiency is critical.

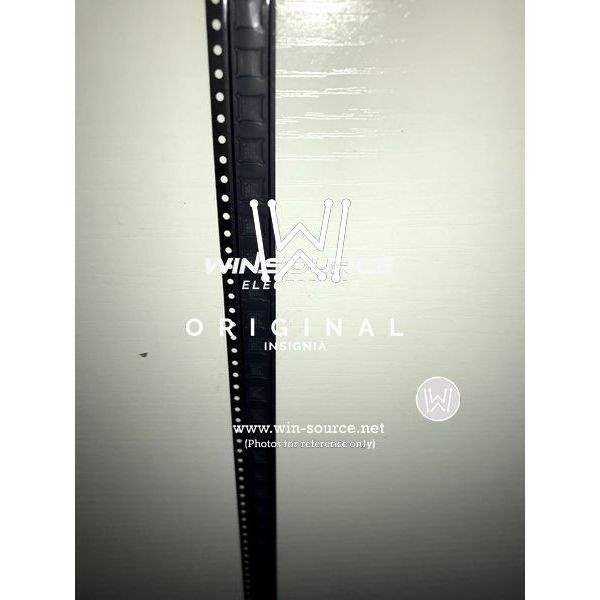

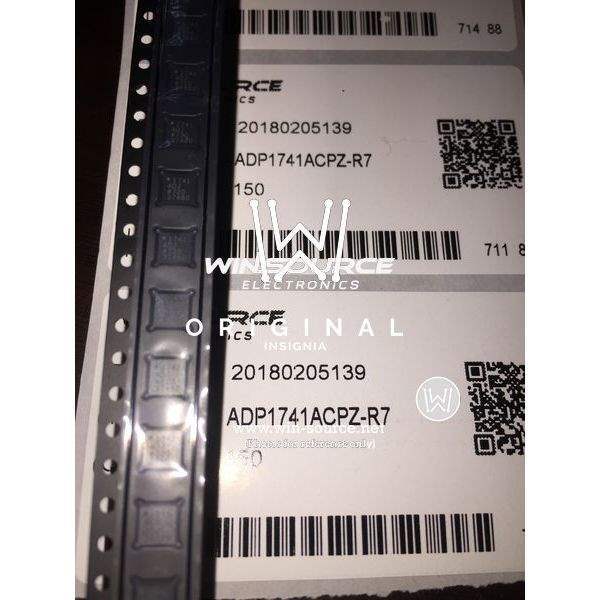

The ADP1741ACPZ-R7 comes in a compact LFCSP (Lead Frame Chip Scale Package) that is both space-saving and offers excellent thermal performance. This package, combined with a low minimum output capacitor requirement, makes it ideal for space-constrained applications.

Additional features of this LDO include overcurrent protection and thermal overload protection, ensuring the safety and longevity of both the regulator and the system it powers. With its fast transient response and excellent line and load regulation, the ADP1741ACPZ-R7 maintains a stable output even under dynamic load conditions.

In summary, the ADP1741ACPZ-R7 from Analog Devices Inc. is a high-performance, adjustable LDO that offers a combination of flexibility, efficiency, and protection. It is an excellent choice for designers looking to optimize their power management solutions in a wide range of applications.
