ADP2389ACPZ-R7: A High-Efficiency, Synchronous Step-Down DC-DC Regulator

The ADP2389ACPZ-R7 is a state-of-the-art synchronous step-down, or buck, DC-DC regulator brought to you by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This regulator is designed to deliver high efficiency and excellent thermal performance, making it an ideal choice for a wide range of applications, including communications infrastructure, networking, industrial, and power regulation modules.

With an input voltage range of 6.5 V to 28 V, the ADP2389ACPZ-R7 can support a variety of power rails, while its output voltage is adjustable from 0.6 V to 90% of the input voltage, allowing for great flexibility in system design. This regulator can provide a continuous output current up to 9 A, making it suitable for high-power applications.

The ADP2389ACPZ-R7 incorporates integrated high-side and low-side MOSFETs, which not only save board space but also improve efficiency by reducing switching losses. The regulator operates at a fixed switching frequency that can be programmed from 200 kHz to 1.4 MHz or synchronized to an external clock to minimize interference with sensitive RF signals in adjacent circuits.

One of the key features of this device is its ability to operate in a current-sharing configuration, which allows multiple ADP2389ACPZ-R7 regulators to be connected in parallel, scaling the output current capability for high-current demands. This makes it an excellent choice for applications requiring scalable power solutions.

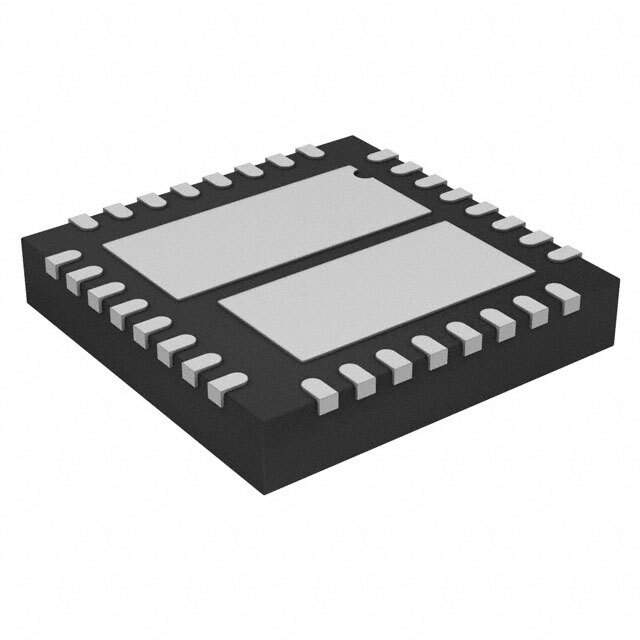

The regulator also includes a range of protective features such as overcurrent protection (OCP), overvoltage protection (OVP), undervoltage lockout (UVLO), and thermal shutdown to ensure reliable operation under abnormal conditions. Its compact 32-lead LFCSP (5 mm x 5 mm) package allows for a small footprint on the PCB, and its exposed pad enhances thermal performance.

With its robust feature set, the ADP2389ACPZ-R7 from Analog Devices Inc. offers engineers a flexible and efficient power management solution that can be tailored to meet the demands of a diverse array of electronic systems.
