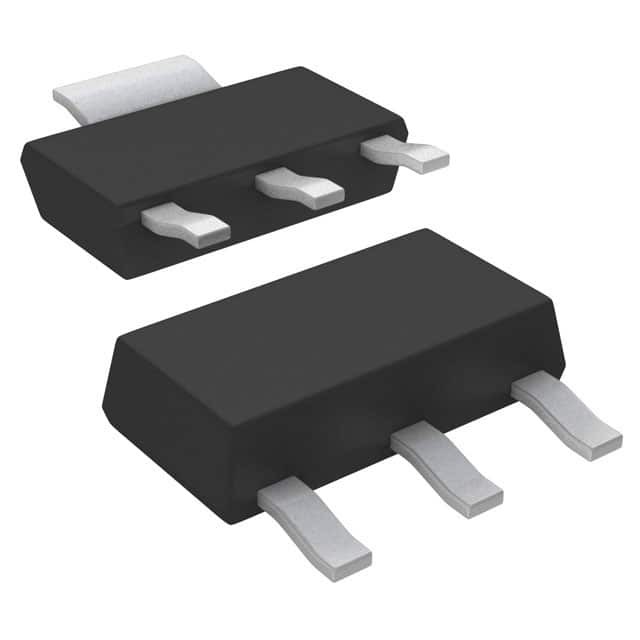

ADP3339AKC-2.85-R7

Part No ADP3339AKC-2.85-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.5A 2.85V SOT-223 TR / Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A SOT-223-3
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Analog Devices Inc.
Series anyCAP®
Package Bulk
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 2.85V
Voltage Dropout (Max) 0.48V @ 1.5A
Current - Output 1.5A
Current - Quiescent (Iq) 200 µA
Current - Supply (Max) 40 mA
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-3
Base Product Number ADP3339
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 860314-ADP3339AKC-2.85-R7
Ultra Librarian 3D Model Ultra Librarian ADP3339AKC-2.85-R7 CAD Model

Description

The ADP3339AKC-2.85-R7 is a high-precision, low-dropout voltage regulator from Analog Devices Inc., designed to deliver a fixed output of 2.85 volts. This regulator is an excellent solution for applications that require a stable voltage supply with low voltage differential and tight regulation characteristics.

Key Features

  • Output Voltage: Fixed 2.85V output with high accuracy.
  • High Output Current: Capable of delivering up to 1.5A of continuous output current, making it suitable for high-power applications.
  • Low Dropout Voltage: Provides excellent regulation with a very low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
  • Stable with Low ESR Capacitors: Stable with ceramic and other types of low ESR output capacitors, providing flexibility in design and reducing overall component costs.
  • Overcurrent and Thermal Protection: Features built-in overcurrent protection and thermal overload protection, safeguarding the device and the system from excessive currents and overheating.
  • Noise Reduction: Low output noise makes it ideal for sensitive RF and precision analog applications.
  • Package: Available in a compact R-7 package, which is suitable for space-constrained applications.

Applications

The ADP3339AKC-2.85-R7 is versatile and can be used in a wide range of applications. These include:

  • High-performance DSP and microcontroller-based systems
  • Fiber optic systems
  • Data acquisition systems
  • Battery-powered devices
  • Medical and healthcare equipment

Product Summary

Analog Devices Inc.'s ADP3339AKC-2.85-R7 provides a reliable and efficient power management solution with its low dropout voltage, high output current, and excellent thermal performance. Its ability to maintain stability with low ESR capacitors and its robust protection features make it an ideal choice for designers looking to enhance system reliability and performance in a variety of demanding applications.
