ADP5052ACPZ-R7: High-Efficiency, Multi-Output Regulator from Analog Devices Inc.

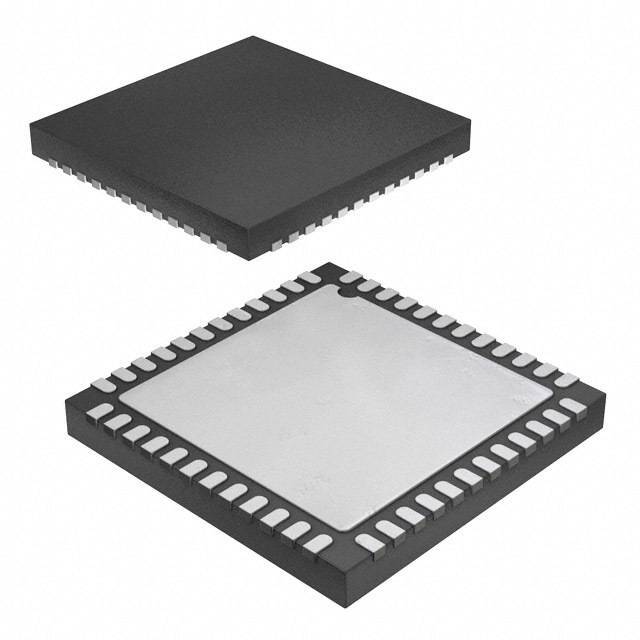

The ADP5052ACPZ-R7 from Analog Devices Inc. is a highly integrated, high-efficiency, multi-output power management unit, perfect for a wide range of applications that require multiple power rails. This compact solution combines four high-performance buck regulators and a supervisory circuit in a single 48-lead LFCSP package, designed to meet the stringent space constraints of modern electronic devices.

Key Features

• Multiple Output Channels: The device includes four synchronous step-down switching regulators with integrated high-side and low-side MOSFETs, delivering efficient power conversion with lower quiescent current.
• Wide Input Voltage Range: The ADP5052 operates from an input voltage range of 4.5 V to 15 V, accommodating a variety of power sources and ensuring flexibility in system design.
• Adjustable Output Voltage: Each regulator's output voltage can be independently set to a value between 0.6 V and 5.5 V, allowing for customization to meet specific circuit requirements.
• High Efficiency: With integrated power-saving modes and a light-load mode, the ADP5052ACPZ-R7 maximizes efficiency across different load conditions, which is crucial for battery-powered applications.
• Supervisory Functions: The device includes supervisory features such as power-on reset (POR) and manual reset inputs, enhancing system reliability and protection.
• Thermal Protection: Over-temperature protection (OTP) and current-limiting circuits are built in to prevent damage from overheating and overcurrent conditions.
• Sequencing and Tracking: The ADP5052ACPZ-R7 supports flexible power sequencing and voltage tracking between channels, simplifying the power-up and power-down processes for systems with multiple supply voltages.

Applications

The versatile nature of the ADP5052ACPZ-R7 makes it suitable for a range of applications, including:

• Communications Infrastructure
• Industrial and Instrumentation
• Healthcare and Medical Devices
• Automotive Infotainment and Body Electronics

With its robust feature set, the ADP5052ACPZ-R7 from Analog Devices Inc. offers a comprehensive power management solution, ensuring efficient, reliable operation across multiple domains and contributing to the performance and longevity of the end product.
