Analog Devices Inc. ADP7102ACPZ-3.3-R7 Voltage Regulator

The ADP7102ACPZ-3.3-R7 from Analog Devices Inc. is a high-performance, CMOS, low-dropout linear regulator that operates from 3.3V input voltage. This compact and efficient voltage regulator offers a fixed output voltage of 3.3V, making it an ideal choice for a wide range of applications that require a stable and precise voltage supply.

With its low dropout voltage and the ability to deliver up to 300 mA of output current, the ADP7102ACPZ-3.3-R7 is particularly well-suited for portable devices, where extended battery life is crucial. The device features excellent transient response and high power supply rejection ratio (PSRR), which ensures a stable output voltage even in the presence of supply voltage fluctuations or varying load conditions.

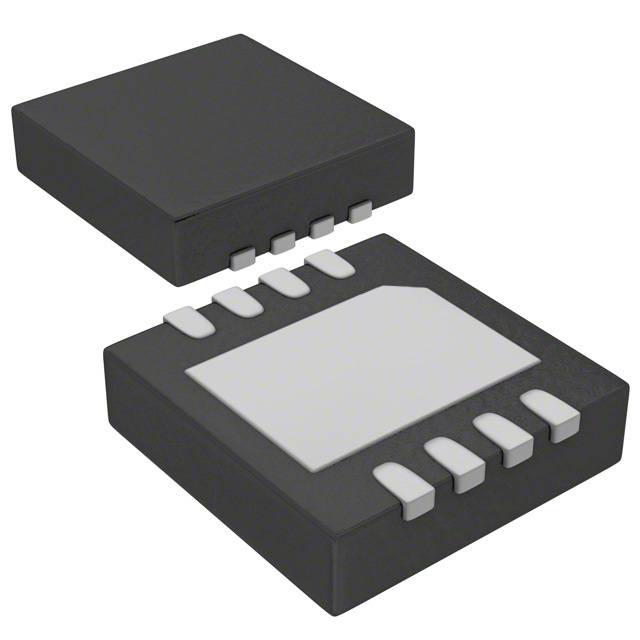

The ADP7102ACPZ-3.3-R7 comes in a compact LFCSP (Lead Frame Chip Scale Package) that is both space-saving and offers good thermal performance. The regulator also includes a range of protective features, such as overcurrent protection and thermal overload protection, which safeguard the device and the application it powers against adverse conditions.

Key features of the ADP7102ACPZ-3.3-R7 include:

• Fixed output voltage of 3.3V with high accuracy
• Low dropout voltage for improved efficiency
• Output current capability of up to 300 mA
• High PSRR for stable operation under varying conditions
• Fast transient response
• Overcurrent and thermal protection features
• Compact LFCSP package suitable for space-constrained applications

This linear regulator is a reliable solution for designers looking to maintain a clean and stable power supply in their electronic systems. Whether it's for consumer electronics, medical devices, or industrial instrumentation, the ADP7102ACPZ-3.3-R7 from Analog Devices Inc. offers a combination of performance, precision, and protection that ensures optimal functionality and longevity for sensitive electronic circuits.
