ADP7104ACPZ-9.0-R7 Voltage Regulator by Analog Devices Inc.

The ADP7104ACPZ-9.0-R7 is a high-performance, CMOS linear voltage regulator, meticulously engineered by Analog Devices Inc., a leader in high-precision analog and mixed-signal processing technology. This voltage regulator offers an outstanding balance of features tailored for applications requiring a low dropout voltage, high output current, and precise voltage regulation.

Key Features:

• Fixed Output Voltage: The device provides a fixed output voltage of 9.0V, suitable for a wide range of applications requiring a regulated power supply.
• High Output Current: It can deliver up to 200 mA of output current, making it an excellent choice for powering sensitive analog and digital circuits.
• Low Dropout Voltage: With a low dropout voltage, the ADP7104ACPZ-9.0-R7 ensures efficient operation even when the input-to-output voltage differential is minimal, thereby improving system efficiency.
• Thermal Overload Protection: The device is equipped with thermal overload protection to safeguard it against excessive temperature and potential damage.
• Short-Circuit Protection: It also features built-in short-circuit protection, providing an additional layer of safety for your electronic designs.
• Noise Reduction: The regulator is designed for low output noise, making it an ideal choice for noise-sensitive applications such as audio or RF circuits.

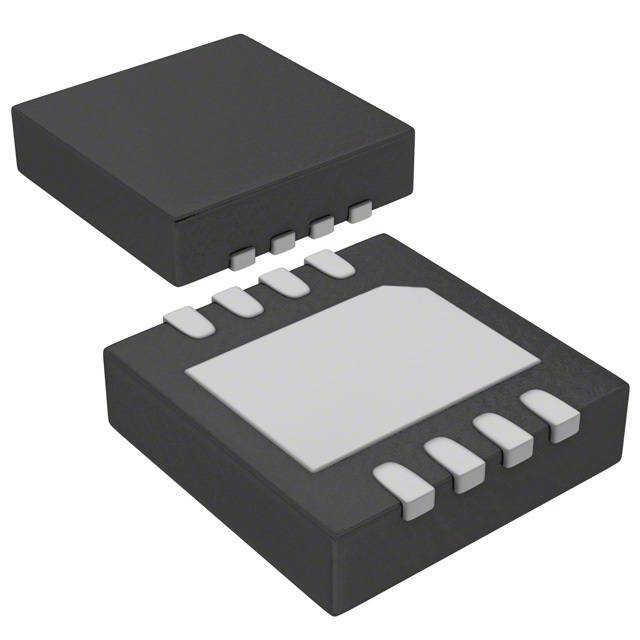

• Package: The device comes in a compact, 8-lead LFCSP (Lead Frame Chip Scale Package) that is suitable for space-constrained applications.

Applications:

The ADP7104ACPZ-9.0-R7 is versatile and can be used in various electronic systems, including:

• Portable and battery-powered devices
• Medical and healthcare equipment
• Industrial and instrumentation panels
• Communication infrastructure
• Automotive electronics

This voltage regulator from Analog Devices Inc. is designed to meet the stringent requirements of modern electronic equipment, offering a reliable and efficient power management solution. The ADP7104ACPZ-9.0-R7 stands out for its robust feature set, ensuring optimal performance across a broad spectrum of applications.

For detailed specifications, application notes, and further information, customers are encouraged to visit the official Analog Devices Inc. website or contact their local sales representative.
