ADP8860ACPZ-R7

Part No ADP8860ACPZ-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20LFCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 7
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Output Voltage 4.3 V to 5.5 V
Channel Output Current 30mA, 60mA
Frequency 1MHz
Dimming I2C
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

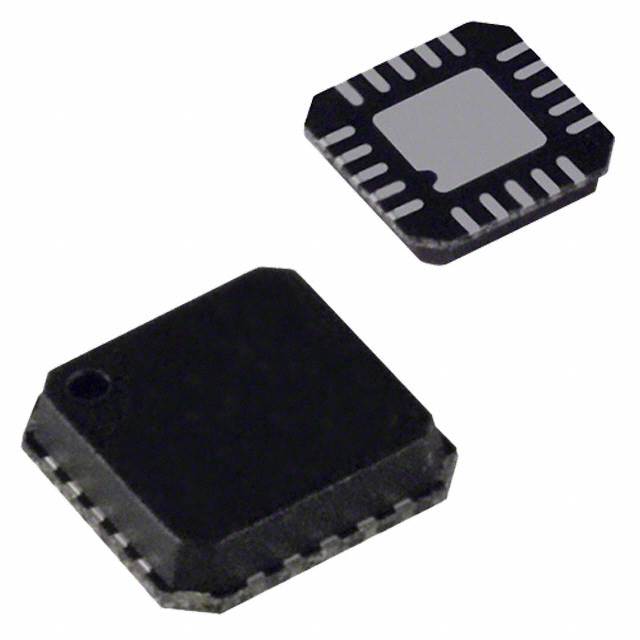

Case / Package 20-LFCSP-VQ (4x4)
Win Source Part Number 173364-ADP8860ACPZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ADP8860ACPZ-R7 CAD Model

Description

ADP8860ACPZ-R7 Backlight LED Driver from Analog Devices Inc.

The ADP8860ACPZ-R7 is a sophisticated backlight LED driver designed by Analog Devices Inc. to power up to seven LEDs, providing a perfect solution for portable devices that require consistent and efficient backlighting. This driver is particularly well-suited for small-form-factor applications such as mobile phones, personal media players, and handheld gaming devices, where space is at a premium and efficient power use is crucial.

Constructed with cutting-edge technology, the ADP8860ACPZ-R7 is housed in a compact 20-lead LFCSP (Lead Frame Chip Scale Package) that measures just 4 mm x 4 mm. This small footprint allows designers to integrate the LED driver into their systems without compromising on space, ensuring that the end product can maintain a sleek and slim profile.

One of the standout features of the ADP8860 is its integrated ambient light sensor interface, which automatically adjusts the backlighting based on the surrounding light conditions. This not only improves the user experience by providing optimal visibility but also helps to conserve battery life by reducing power consumption when high brightness levels are not necessary.

The driver operates on a supply voltage ranging from 2.3 V to 5.5 V, making it versatile for use in various device configurations. It also offers a programmable dimming function, which can be controlled via an I2C-compatible interface, giving designers the flexibility to create custom brightness profiles and effects that enhance the user interface of the end product.

Safety features are not overlooked in the ADP8860ACPZ-R7. It includes over-temperature protection, LED fault detection, and short-circuit protection, ensuring reliable performance and extending the lifespan of the backlighting system. The device's efficiency and thermal management are further enhanced by an integrated charge pump that optimizes the power conversion for the LEDs.

In summary, the ADP8860ACPZ-R7 from Analog Devices Inc. is a feature-rich and highly efficient solution for driving LED backlights in portable electronic devices, offering designers a blend of compactness, power efficiency, and advanced control features.
