ADUM1402ARW-RL: A Robust Digital Isolator from Analog Devices Inc.

The ADUM1402ARW-RL is a cutting-edge digital isolator manufactured by Analog Devices Inc., designed to provide reliable signal isolation in a variety of electronic applications. This component utilizes Analog Devices' proprietary iCoupler® technology to transfer digital signals across an isolation barrier, ensuring the integrity of the data and the safety of the receiving end of the system.

Featuring four independent isolation channels, the ADUM1402ARW-RL is capable of bidirectional communication, making it a versatile solution for systems that require data exchange in both directions. Each channel supports data rates up to 10 Mbps, offering high-speed performance that is suitable for modern digital communication standards.

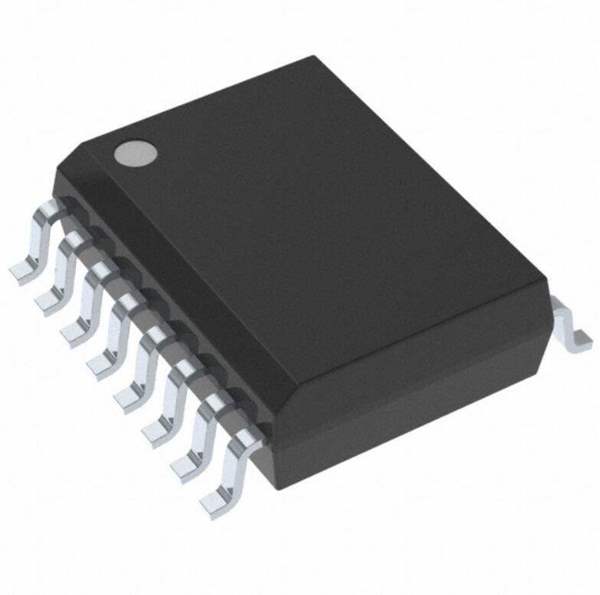

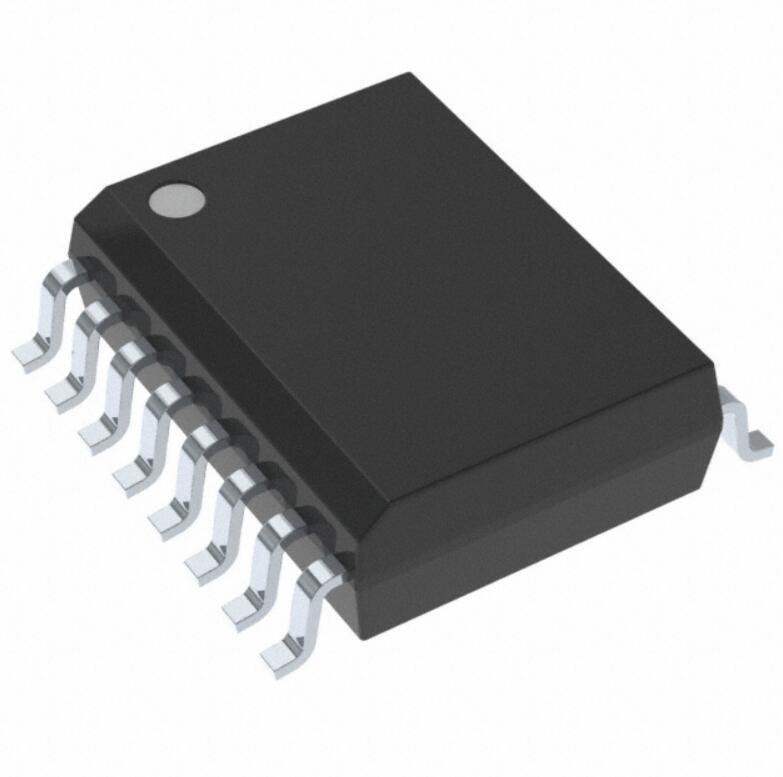

The isolator comes in a 16-lead SOIC wide-body package, denoted by the "ARW" in its part number, which provides a robust isolation voltage rating of 2500 Vrms for 1 minute. This makes the ADUM1402ARW-RL an excellent choice for applications needing a high degree of electrical insulation, such as industrial automation, power supply control, and data acquisition systems.

One of the key advantages of the ADUM1402ARW-RL is its ease of use. Unlike traditional optocouplers, it does not require any additional components like external drivers or clamping diodes. This simplifies the design process and reduces the overall footprint on the PCB, saving valuable space in compact electronic designs.

The device operates over the wide temperature range of -40°C to +105°C, ensuring reliable performance in harsh environmental conditions. Furthermore, it is compliant with several industry safety standards, including UL, CSA, and IEC, which attest to its safety and reliability for use in electrical isolation applications.

In summary, the ADUM1402ARW-RL from Analog Devices Inc. is a high-performance, reliable solution for digital signal isolation needs. With its high-speed data transfer, robust isolation capabilities, and compliance with safety standards, it is an ideal choice for engineers looking to incorporate safe and efficient isolation in their designs.
