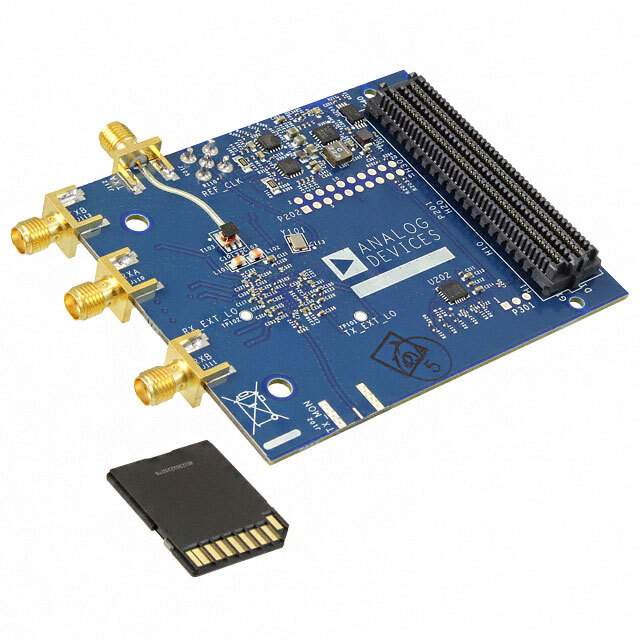

AD-FMCOMMS4-EBZ Evaluation Board by Analog Devices Inc.

The AD-FMCOMMS4-EBZ is a feature-rich evaluation board designed by Analog Devices Inc., tailored for RF enthusiasts, engineers, and researchers focusing on high-speed analog-to-digital and digital-to-analog conversion. This board is an ideal tool for learning and developing RF systems, providing a flexible platform for testing and prototyping a wide range of RF applications.

At the heart of the AD-FMCOMMS4-EBZ is the AD9364, a high-performance, highly integrated RF Agile Transceiver™. This transceiver is designed for use in 3G and 4G base station applications, providing a single-chip solution that can cover a wide frequency range of 70 MHz to 6 GHz. The AD9364 supports channel bandwidths from less than 200 kHz to 56 MHz by changing the sampling rate and digital filters.

The evaluation board connects to the FPGA development platform via an FMC (FPGA Mezzanine Card) connector, which is compatible with various industry-standard FPGAs, thereby offering a convenient interface for digital signal processing and further analysis. The AD-FMCOMMS4-EBZ also includes a wide range of features, such as:

• Integrated Phase-Locked Loops (PLLs) for frequency synthesis
• High dynamic range ADCs and DACs for high-quality signal acquisition and playback
• Programmable filters for baseband signal processing
• Flexible gain control for optimal signal reception and transmission
• Multiple GPIOs for additional interfacing and control

The AD-FMCOMMS4-EBZ is supported by comprehensive documentation, including detailed schematics, layout files, and reference designs. Analog Devices also offers software drivers and an open-source Linux-based software stack, which simplifies the development process and allows for rapid prototyping and testing.

Whether you're designing for wireless communications, test and measurement, or RF applications requiring high-speed data conversion, the AD-FMCOMMS4-EBZ evaluation board is a versatile and powerful tool that will accelerate your development cycle and help you achieve your design goals.
