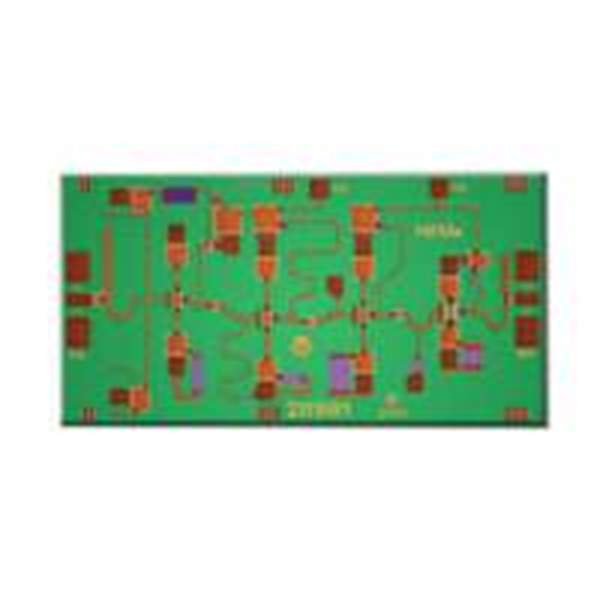

The HMC263-SX from Analog Devices Inc. is a high-performance, three-stage GaAs MMIC Low Noise Amplifier (LNA) designed to operate in the frequency range of 2 GHz to 6 GHz, making it an excellent choice for a wide range of applications in the RF and microwave domain. This LNA is well-suited for use in telecommunications, satellite communications, electronic warfare, and radar systems, where it can provide exceptional signal amplification with minimal added noise.

Key Features

• Frequency Range: The HMC263-SX operates over a broad frequency range from 2 GHz to 6 GHz, catering to a variety of RF applications.
• High Gain: It offers a high gain of 17 dB, which is beneficial for signal amplification in receiver chains.
• Low Noise Figure: With a low noise figure of 2.0 dB, the LNA ensures excellent sensitivity and signal integrity.
• Output Power: The device provides an output power (P1dB) of 19 dBm, enabling it to drive subsequent stages in a signal chain without significant distortion.
• Supply Voltage: The HMC263-SX operates on a supply voltage of +5V, making it compatible with standard power supplies.
• Package: It is available in a compact, RoHS-compliant, 6-lead SOT26 package, which is suitable for space-constrained applications.

Applications

• Telecommunications
• Satellite Communications
• Electronic Warfare Systems
• Radar Systems
• Test Equipment

The HMC263-SX LNA from Analog Devices Inc. is designed to deliver outstanding performance with its robust design and high-quality construction. It is an ideal choice for engineers and designers looking for a reliable and efficient solution to enhance the performance of their RF and microwave systems. By integrating the HMC263-SX into their designs, users can expect improved system sensitivity, extended range, and overall superior performance.
