Introducing the HMC8412LP2FETR from Analog Devices Inc.

The HMC8412LP2FETR is a high-performance, passive GaAs MESFET MMIC Low Noise Amplifier (LNA) that comes in a compact, surface-mountable 2x2 mm SMT package. Designed by Analog Devices Inc., a leader in the semiconductor industry, this LNA is engineered to provide exceptional noise performance and high gain while maintaining excellent linearity across a wide frequency range.

Key Features

• Frequency Range: The HMC8412LP2FETR operates over a broad frequency range from 2 GHz to 28 GHz, making it an ideal choice for a wide array of applications including Electronic Warfare (EW), military communications, satellite communications, and test equipment.
• Low Noise Figure: With a low noise figure of 2.0 dB typical at 18 GHz, this LNA is capable of providing clear signal amplification, which is critical in high-performance receiver applications.
• High Gain: Offering a high gain of 14 dB typical at 18 GHz, it ensures the signals are amplified sufficiently for further processing.
• Output IP3: The HMC8412LP2FETR features a high third-order intercept (Output IP3) of 25 dBm, indicating its ability to maintain linearity and handle high power without significant distortion.
• Supply Voltage: It operates on a supply voltage of +3.3V to +5V, providing flexibility in various circuit designs.
• Power Consumption: The device has a modest power consumption, making it suitable for battery-powered and portable applications.

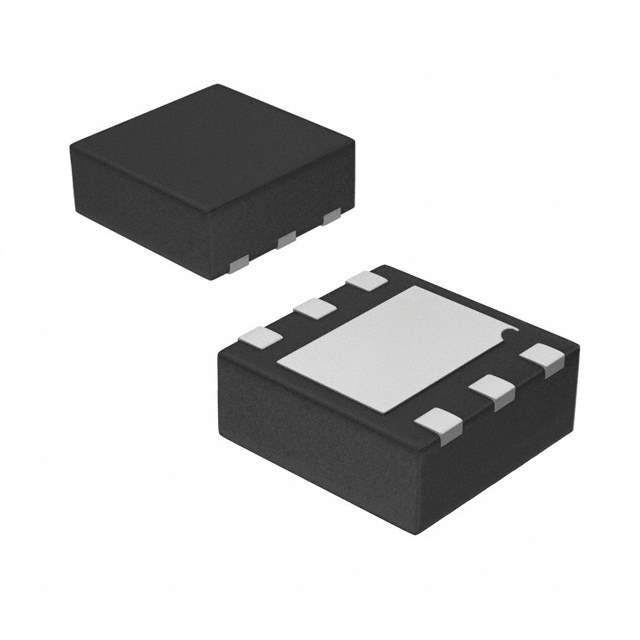

• Package: The compact 2x2 mm SMT package allows for efficient use of board space and is compatible with standard manufacturing processes.

Applications

The versatility of the HMC8412LP2FETR LNA makes it an excellent choice for a variety of applications. It is particularly well-suited for:

• Fiber Optic Applications
• Point-to-Point and Point-to-Multi-Point Radios
• Test Instruments and Sensors
• Space and Satellite Communications

With its combination of low noise figure, high gain, and wide frequency range, the HMC8412LP2FETR from Analog Devices Inc. is a robust solution for designers looking to enhance the performance of their high-frequency communication systems.
