Product Overview: LT3081IDF from Analog Devices Inc.

The LT3081IDF is a robust linear regulator designed by Analog Devices Inc., offering a wide range of features that make it an ideal choice for demanding power management applications. This regulator is part of the LT3081 series, known for their high performance and reliability in regulating voltage within electronic systems.

Key Features

• Adjustable Output: The LT3081IDF provides an adjustable output voltage from 0V to 36V, which can be set with a single resistor. This flexibility allows it to cater to a vast array of voltage requirements for different electronic components and systems.
• Current Output: It offers an output current of up to 1.5A, making it suitable for applications that require a moderate amount of power.
• Extended Safe Operating Area (SOA): The regulator is designed with an internal protection circuit that extends the safe operating area, ensuring the device operates safely under a variety of conditions.
• Low Dropout Voltage: The low dropout voltage feature enables efficient operation, even with very low differential voltage between the input and output, which is critical for battery-powered devices and applications with tight power budgets.

Thermal Performance and Protection

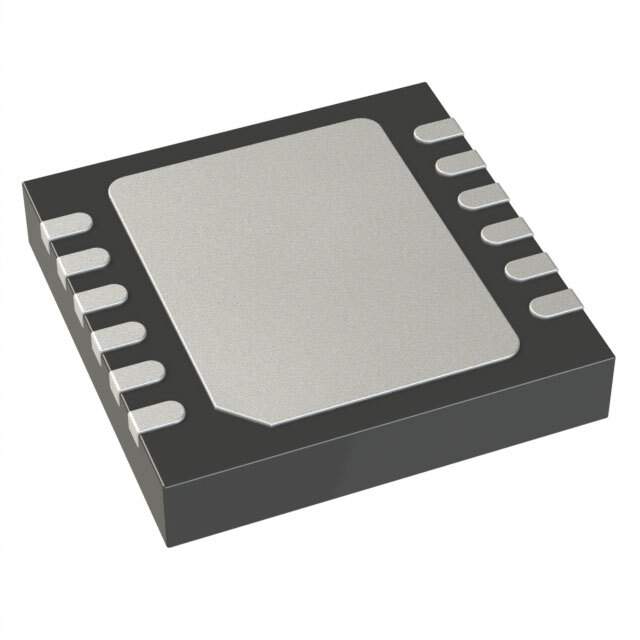

The LT3081IDF is housed in a robust DFN package, which offers excellent thermal performance. This package, combined with internal thermal shutdown, ensures that the device remains protected against overheating, enhancing its durability and longevity.

Stability and Reliability

Designed with an emphasis on stability, the LT3081IDF can maintain consistent performance across a wide range of capacitive loads and temperature variations. The device is also equipped with short-circuit protection and reverse-battery protection, which contribute to its reliability in complex circuits.

Applications

This versatile regulator is suitable for a variety of applications, including but not limited to:

• Power supplies for sensitive analog and digital circuits
• Post-regulation for switching power supplies
• Battery charging and power management
• Automotive and industrial electronics

The LT3081IDF from Analog Devices Inc. is a top choice for engineers and designers looking for a reliable and flexible linear regulator capable of delivering precise voltage regulation and robust performance in a wide range of electronic applications.
