Introducing the LT3083EDF from Analog Devices Inc.

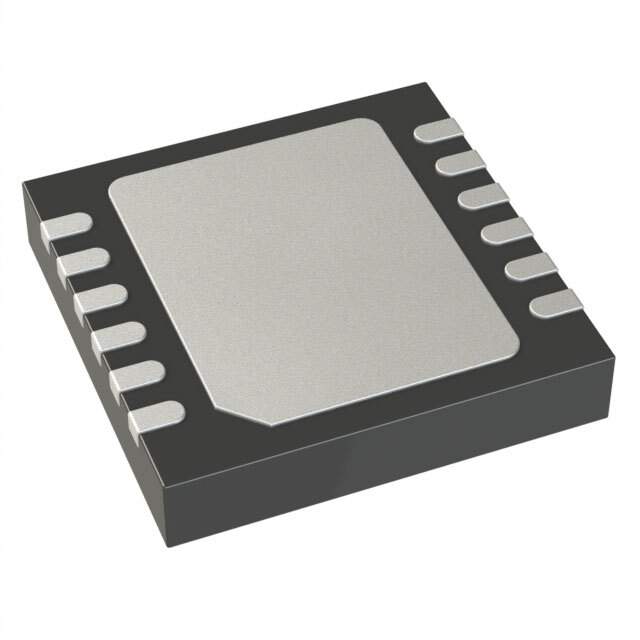

The LT3083EDF is a robust linear voltage regulator with innovative features, designed to meet the demands of modern electronic applications. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this regulator offers a unique combination of flexibility, reliability, and efficiency. The LT3083EDF is housed in a compact DFN package, making it suitable for space-constrained applications without compromising on performance.

Key Features and Benefits

• Adjustable Output: The LT3083EDF provides an adjustable output voltage from 0V to V<sub>IN - 0.8V, allowing for a wide range of applications. This versatility makes it an ideal choice for custom voltage requirements.
• Extended Safe Operating Area (SOA): The device is engineered with an internal protection circuitry that ensures it operates within a safe area, even under abnormal conditions such as power surges or thermal events.
• Low Dropout Voltage: With a low dropout voltage of only 310mV at 3A, the LT3083EDF maintains its efficiency even when the input-to-output voltage differential is minimal, making it suitable for battery-powered devices.
• High Output Current: Capable of delivering up to 3A of continuous output current, this regulator can power a wide range of components, from sensitive RF circuits to digital processors.
• Thermal Regulation: The LT3083EDF is designed with an internal thermal limiting circuit that protects the device under high-temperature conditions, ensuring long-term reliability.
• Stable with Low ESR Capacitors: The regulator remains stable with ceramic output capacitors, which have lower equivalent series resistance (ESR) compared to other types, thereby enhancing the overall stability of the system.

Applications

The LT3083EDF is suitable for a vast array of applications, including but not limited to:

• Power Supplies for Data Communication Equipment
• Automotive Electronics
• Industrial Control Systems
• Portable Consumer Devices
• Medical Equipment

With its precise voltage control, robust design, and high current capability, the LT3083EDF from Analog Devices Inc. is a top-tier solution for designers looking to enhance the performance and reliability of their power management systems.
