Product Overview: LT8316IFE#TRPBF from Analog Devices Inc.

The LT8316IFE#TRPBF is a cutting-edge, isolated flyback converter IC designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This innovative product simplifies the design of an isolated DC/DC converter without the need for an optocoupler. It operates over a wide input voltage range and is suitable for a variety of applications including industrial, medical, and telecommunications equipment.

Key Features

• Input Voltage Range: The LT8316IFE#TRPBF is capable of handling a wide input range, making it versatile for various power supply designs.
• No Optocoupler Required: It utilizes a sample-and-hold technique to regulate the output voltage, which eliminates the need for an optocoupler and simplifies the design process.
• Boundary Mode Operation: This device operates in boundary mode, which is a variable frequency current mode control switching scheme, resulting in a smaller magnetic solution and improved efficiency.
• Integrated 630V/300mA Switch: The inclusion of a high voltage power MOSFET switch enhances the overall robustness and reliability of the design.
• Programmable Soft-Start: The soft-start feature limits inrush current during startup, providing additional protection to the converter and the load.
• Thermal Protection: With built-in thermal shutdown, the LT8316IFE#TRPBF ensures safe operation under abnormal thermal conditions.

Applications

The versatility of the LT8316IFE#TRPBF makes it an excellent choice for a wide array of isolated power supply applications. Its robust design is particularly well-suited for:

• Industrial Controls
• Isolated Medical Equipment Power Supplies
• Telecommunications Infrastructure
• Offline Battery Chargers
• Housekeeping Power Supplies

Product Quality and Reliability

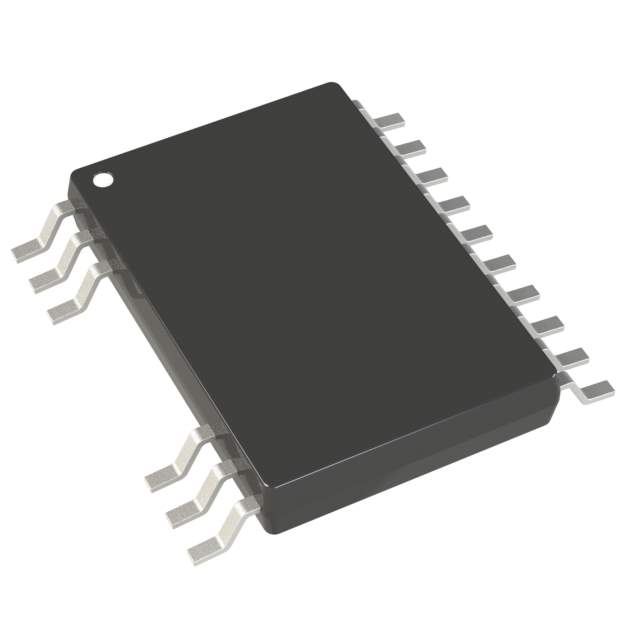

Analog Devices Inc. is renowned for its commitment to product quality and reliability. The LT8316IFE#TRPBF is no exception, as it is designed to meet stringent industry standards. The device is available in a thermally enhanced 16-lead FE package, ensuring efficient heat dissipation for reliable operation across its specified temperature range.

With its advanced features and robust design, the LT8316IFE#TRPBF from Analog Devices Inc. is a smart choice for designers looking to implement an efficient and reliable isolated flyback converter in their power management systems.
