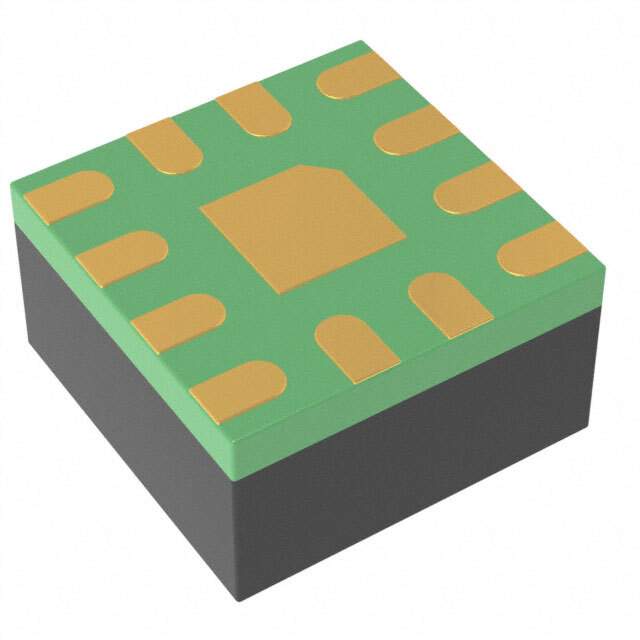

Product Overview: LT8618CAV#TRPBF

The LT8618CAV#TRPBF is a high-performance, compact, synchronous step-down regulator from Analog Devices Inc., a renowned leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device is designed to deliver efficiency and reliability for a wide range of applications, including automotive, industrial, and telecommunications systems.

Key Features

• Wide Input Voltage Range: The LT8618CAV#TRPBF operates from an input voltage range of 3.4V to 42V, making it suitable for applications with varying supply voltages and for automotive systems that need to withstand cold-crank and stop-start scenarios.
• High Efficiency: With its synchronous rectification design, this regulator achieves up to 96% efficiency, which minimizes heat generation and improves overall system performance.
• Low Quiescent Current: The device features an ultra-low quiescent current of 2.5µA with the output in regulation, which is ideal for battery-powered and always-on applications.
• Fast Minimum On-Time: Its fast minimum on-time of just 30ns enables large step-down ratios at high switching frequencies, allowing for small external components and a compact overall design.
• Adjustable Switching Frequency: The switching frequency is programmable from 200kHz to 3MHz, which provides flexibility in optimizing the size of external components and in avoiding critical noise-sensitive frequency bands.

Protection Features

• Thermal Protection: Built-in thermal shutdown ensures the device operates within safe temperature limits.
• Overvoltage Protection: The regulator includes overvoltage protection to safeguard the device and the load from unexpected supply spikes.
• Current Limiting: The LT8618CAV#TRPBF incorporates both cycle-by-cycle current limiting and short-circuit protection, enhancing the safety and durability of the application.

Applications

The versatile nature of the LT8618CAV#TRPBF makes it an excellent choice for a variety of applications, including but not limited to:

• Automotive and heavy equipment power systems
• Industrial control and automation
• Telecommunications infrastructure
• Portable and battery-operated devices

With its robust feature set, the LT8618CAV#TRPBF from Analog Devices Inc. is engineered to meet the stringent requirements of modern electronic systems, delivering both performance and reliability in a small footprint package.
