Analog Devices Inc. LT8648SJV#PBF Ultra-Low EMI Silent Switcher 2

The LT8648SJV#PBF is a cutting-edge step-down (buck) switching regulator from Analog Devices Inc., designed to deliver high efficiency, compact design, and ultra-low electromagnetic interference (EMI) emissions. This component is part of the Silent Switcher 2 family, which is engineered to meet the stringent requirements of automotive, industrial, and telecommunications applications that demand minimal noise and robust performance.

With a wide input voltage range of 3.4V to 65V, the LT8648SJV#PBF is versatile enough to handle a variety of input sources, making it suitable for both battery-powered and automotive systems. The device offers a maximum continuous output current of 6A, enabling it to power a wide array of devices and systems. Its high switching frequency of up to 3MHz allows for the use of small external components, resulting in a compact power solution that saves board space and reduces overall system cost.

The LT8648SJV#PBF employs Silent Switcher 2 architecture, which incorporates bypass capacitors to optimize all the fast current loops internally and minimize EMI emissions over a broad frequency spectrum. This innovative design ensures that the switching regulator meets CISPR 25 Class 5 peak EMI limits, even when operating at full load, making it an ideal choice for noise-sensitive applications.

Efficiency is a key feature of the LT8648SJV#PBF, with its synchronous rectification delivering efficiencies as high as 95%. This high efficiency reduces power loss and minimizes heat generation, which can be critical in thermally constrained environments. Furthermore, the device includes a burst mode operation, which provides ultra-low quiescent current, making it suitable for systems that require extended battery life or energy-saving modes.

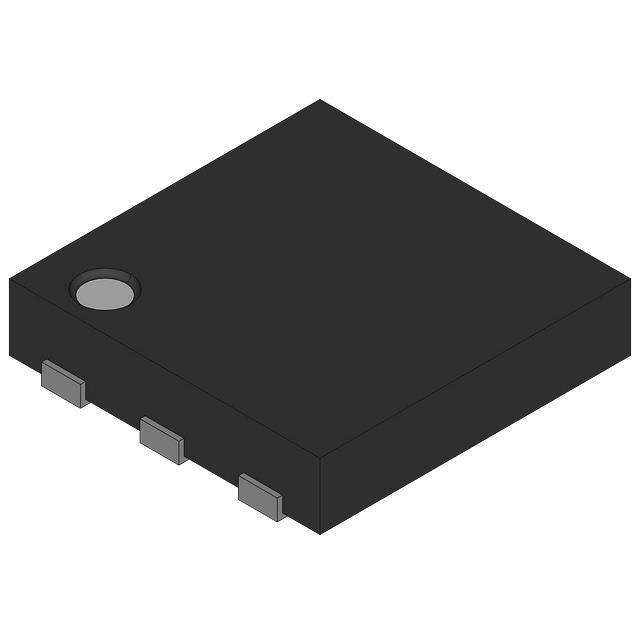

Additional features of the LT8648SJV#PBF include internal compensation, a fast minimum on-time of only 30ns for high step-down ratios, a thermally enhanced 4mm x 5mm LQFN package, and multiple protection features such as overvoltage, overcurrent, and thermal shutdown. With these capabilities, the LT8648SJV#PBF is not only a powerful and efficient solution but also a reliable and safe choice for your power regulation needs.

Whether you are designing an automotive infotainment system, a portable device, or a sensitive RF application, the LT8648SJV#PBF from Analog Devices Inc. offers the performance, efficiency, and low-noise operation that modern electronic systems require.
