Analog Devices Inc. LTC2630AHSC6-HZ12 Digital-to-Analog Converter

The LTC2630AHSC6-HZ12 is a high-precision, 12-bit, digital-to-analog converter (DAC) from Analog Devices Inc., designed to deliver exceptional performance and accuracy for a wide range of applications. This compact DAC is part of the LTC2630 family, which is known for its low power consumption and ease of use, making it an ideal choice for battery-operated devices, industrial control systems, and sophisticated electronics where space is at a premium.

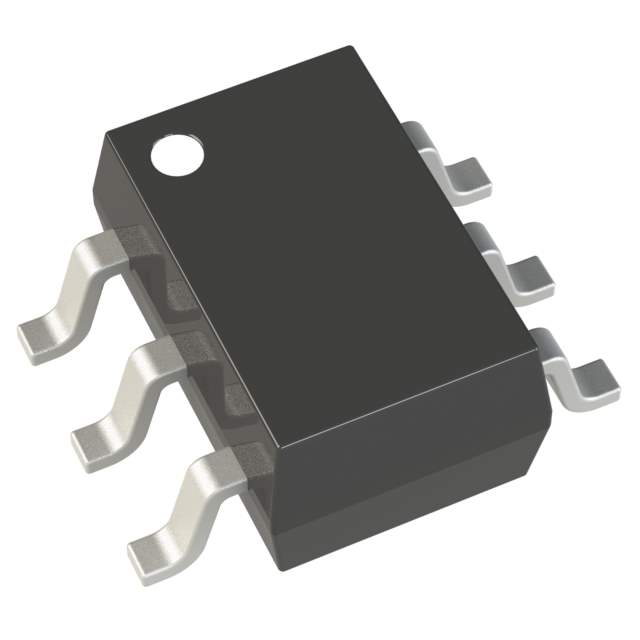

This particular model comes in a tiny SC70-6 package, which is highly sought after for space-constrained applications. The LTC2630AHSC6-HZ12 operates from a 2.7V to 5.5V supply, providing a flexible power range to accommodate various system designs. It also features an integrated reference with 10ppm/°C max temperature coefficient, which enhances the overall stability and precision of the output signal.

One of the standout features of the LTC2630AHSC6-HZ12 is its user-friendly SPI interface, which allows for seamless integration with microcontrollers and other digital systems. This interface simplifies the process of sending digital commands to the DAC, enabling users to easily set the desired output voltage with high accuracy.

With its Rail-to-Rail output capability, the LTC2630AHSC6-HZ12 ensures that the output can swing to both supply rails, maximizing the dynamic range available in the system. This is particularly useful in single-supply operations where every volt matters for the performance of the application.

The LTC2630AHSC6-HZ12 also includes a Power-On Reset feature that sets the DAC output to zero scale or mid-scale at power-up, depending on the model, thereby eliminating any unpredictable states upon startup. Additionally, the device has a low power shutdown mode, which reduces the power consumption to 0.4µA, further extending battery life in portable applications.

In summary, the LTC2630AHSC6-HZ12 from Analog Devices Inc. is a versatile and reliable DAC solution that offers high accuracy, low power consumption, and a compact form factor, making it a top choice for engineers and designers looking to enhance their systems with precise analog control.
