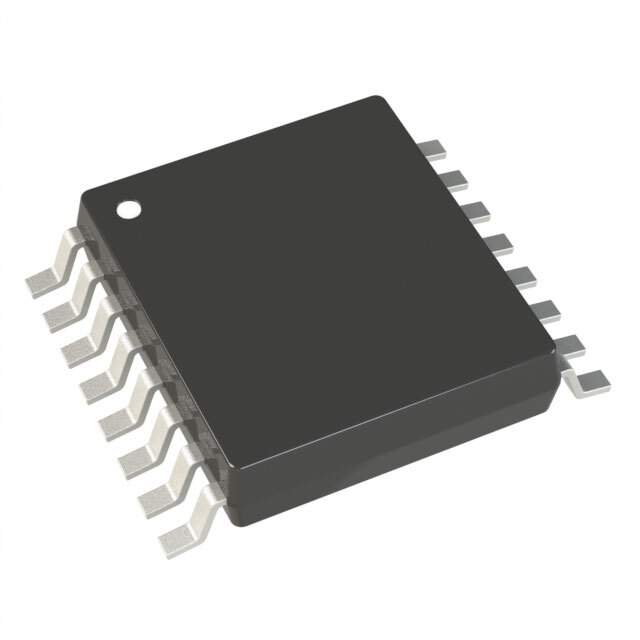

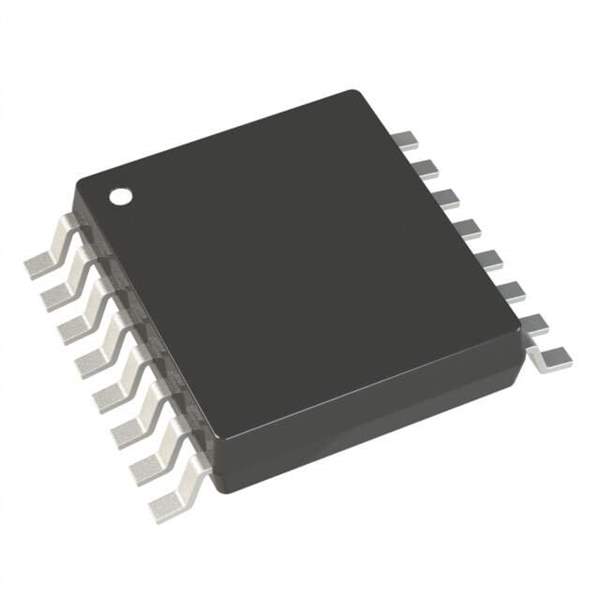

LTC6090HFE#PBF

Part No LTC6090HFE#PBF
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1 CIRCUIT 16TSSOP / General Purpose Amplifier 1 Circuit Rail-to-Rail 16-TSSOP-EP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear>Amplifiers>Instrumentation, OP Amps, Buffer Amps
Manufacturer Analog Devices Inc.
Packaging Tube
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 21V/µs
Gain Bandwidth Product 12 MHz
Current - Input Bias 3 pA
Voltage - Input Offset 330 µV
Current - Supply 2.8mA
Voltage - Supply Span (Min) 9.5 V
Voltage - Supply Span (Max) 140 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 16-TSSOP-EP
Base Product Number LTC6090
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number 505-LTC6090HFE#PBF,LTC6090HFE#PBF-ND,-2735-LTC6090HFE#PBF
Standard Package 95
Win Source Part Number 1319301-LTC6090HFE#PBF
Ultra Librarian 3D Model Ultra Librarian LTC6090HFE#PBF CAD Model

Description

Product Overview: LTC6090HFE#PBF

The LTC6090HFE#PBF is a high-voltage, precision operational amplifier brought to you by Analog Devices Inc., a company renowned for its high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs). This particular model is designed to cater to applications requiring a wide dynamic range and the ability to operate with high supply voltages.

Key Features

  • Wide Supply Voltage Range: The LTC6090HFE#PBF can operate from a supply voltage range of up to 140V (70V if operating from a dual supply), making it suitable for high-voltage applications.
  • High Output Current: This op-amp is capable of delivering a continuous output current of up to 10mA, which is substantial for high-voltage operations.
  • Low Input Bias Current: It features a low input bias current, making it ideal for precision applications such as sensor interfaces and A/D converter buffer amplifiers.
  • Stability: Designed with stability in mind, it can drive capacitive loads up to 1000pF without any additional external compensation.
  • Thermal Performance: The LTC6090HFE#PBF is housed in a thermally efficient TSSOP-16 package, ensuring reliable operation under varying temperature conditions.

Applications

The operational amplifier is versatile and can be used in a variety of applications including:

  • High-voltage instrumentation
  • Piezoelectric transducer amplifiers
  • Electrophoresis
  • Industrial process controls
  • Medical instrumentation
  • Test equipment

Quality and Reliability

Analog Devices Inc. ensures that the LTC6090HFE#PBF meets the highest standards of quality and reliability. The product is rigorously tested to perform under extreme conditions and is built to provide consistent performance over its operational lifespan.

Conclusion

The LTC6090HFE#PBF from Analog Devices Inc. is an exceptional choice for designers in need of a robust, high-voltage operational amplifier with precision characteristics. Its broad supply voltage range, high output current, low input bias current, and stability with capacitive loads make it a highly adaptable component for a wide array of high-voltage applications.
