The EV-ADF4360-2EB1Z is a state-of-the-art evaluation board designed by Analog Devices Inc. to facilitate the testing and development of the ADF4360-2 Integrated Synthesizer and Voltage-Controlled Oscillator (VCO). This comprehensive evaluation solution is engineered to provide engineers and designers with a robust platform for exploring the features and performance of the ADF4360-2 in various applications.

Key Features

• Integrated Synthesizer and VCO: The ADF4360-2 is a fully integrated device, combining a synthesizer and a VCO, which simplifies design processes and reduces the number of external components needed.
• Frequency Range: The ADF4360-2 on the evaluation board covers an operational frequency range from 1850 MHz to 2170 MHz, making it suitable for a wide array of RF applications.
• Programmable Divider: A programmable dual-modulus prescaler (8/9, 16/17, or 32/33) allows for fine resolution frequency setting.
• Easy-to-Use Software: The evaluation board comes with user-friendly software that runs on a PC, providing a graphical user interface (GUI) for easy control and configuration of the synthesizer.
• Flexible Power Supply Options: The board is designed to be powered either through the USB interface or via an external power supply, ensuring versatility in various testing environments.

Applications

The EV-ADF4360-2EB1Z evaluation board is suitable for a broad range of applications, including:

• Wireless Infrastructure (GSM, GPRS, LTE)
• Test and Measurement Equipment
• Wireless Local Loop
• Private Mobile Radios
• Satellite Terminals

Package Contents

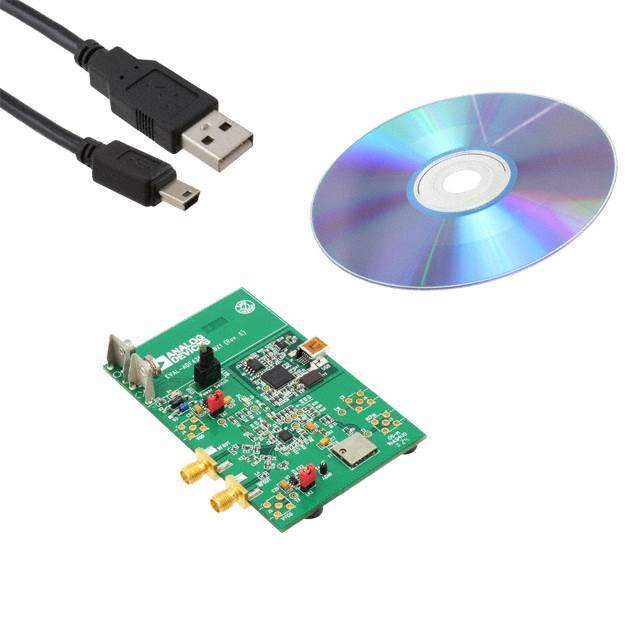

The EV-ADF4360-2EB1Z package includes the evaluation board itself, accompanied by the necessary software for configuration and testing. Users should ensure they have a compatible USB interface and a power supply if not intending to power the device via USB.

Additional Resources

For further information and detailed technical specifications, users can access data sheets, application notes, and product support through the Analog Devices Inc. website or by contacting their customer support team.
