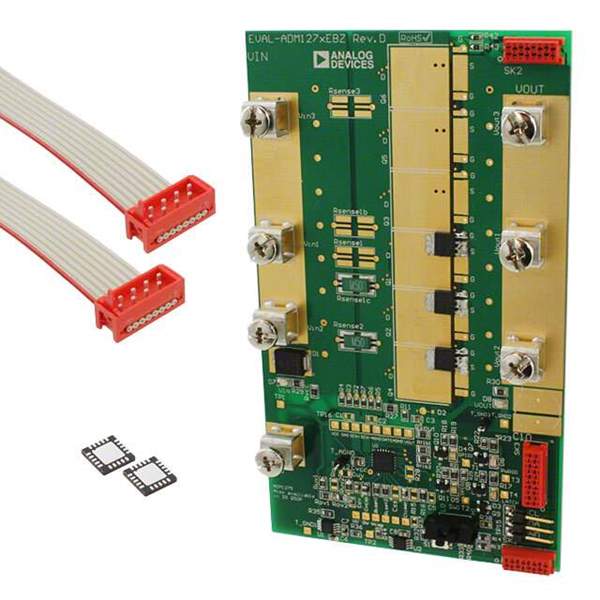

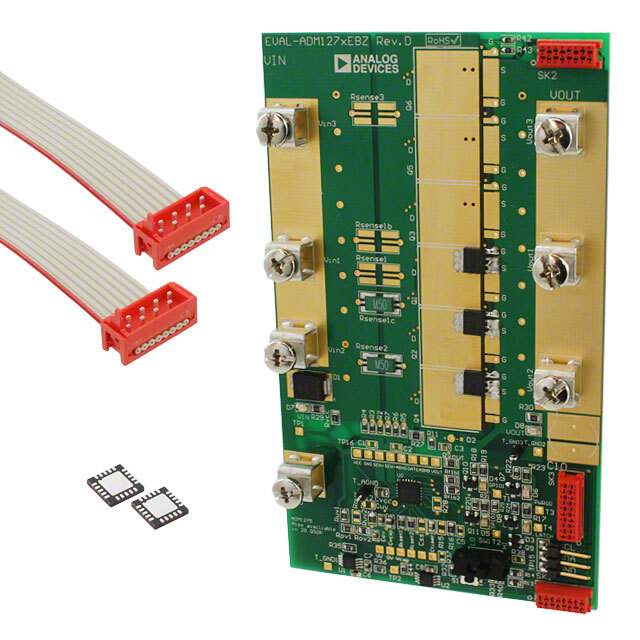

EVAL-ADM1275EBZ Evaluation Board from Analog Devices Inc.

The EVAL-ADM1275EBZ is a high-performance evaluation board designed for testing the capabilities of the ADM1275 Hot Swap Controller and Digital Power Monitor from Analog Devices Inc. This sophisticated tool is engineered to facilitate the development of power management solutions that require safe insertion and removal of circuit boards into live backplanes.

At the heart of the EVAL-ADM1275EBZ is the ADM1275, an advanced hot swap controller equipped with an integrated 12-bit analog-to-digital converter (ADC) that enables precise monitoring of current, voltage, and power. This allows for real-time decision-making and system protection based on accurate measurements. The ADM1275 also includes a programmable power limit feature, which is essential for protecting the system from excessive power draw that could lead to damage or instability.

The evaluation board provides a user-friendly interface with test points and jumpers, allowing for easy access to the ADM1275's features. It is designed to operate over a wide supply voltage range, making it suitable for a variety of applications, including servers, network routers, and industrial systems. The board also includes a USB interface, which can be connected to a PC for advanced configuration and monitoring using the provided software.

Key features of the EVAL-ADM1275EBZ include:

• Accurate monitoring of the supply voltage, current, and power through the ADM1275
• Programmable current limit and circuit breaker functionalities
• Black Box recorder function for fault recording
• Adjustable overvoltage and undervoltage thresholds
• Configurable fault response times
• Integrated temperature sensor for thermal monitoring
• LED indicators for status and fault signals

The EVAL-ADM1275EBZ is an essential tool for designers and engineers who are developing power management systems that require high reliability and advanced monitoring capabilities. With its comprehensive feature set and user-friendly design, this evaluation board streamlines the process of prototyping and testing, accelerating the time-to-market for new products and systems.

For more information and detailed specifications, users can refer to the accompanying documentation and software provided by Analog Devices Inc., ensuring a smooth and efficient evaluation experience.
