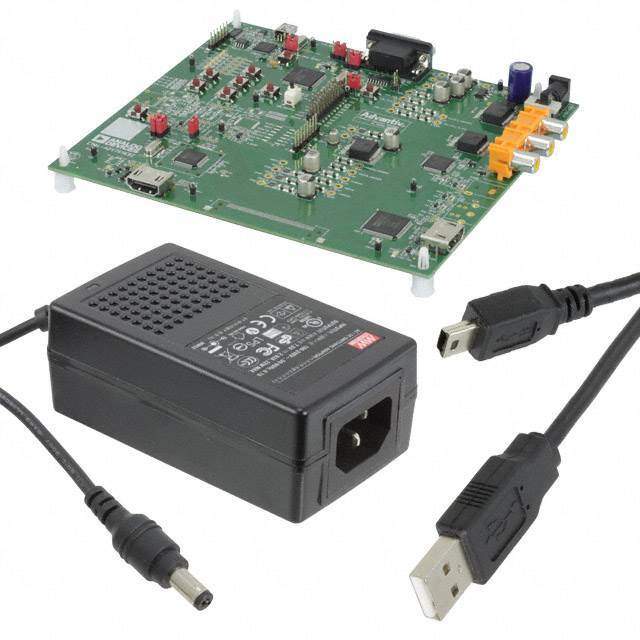

EVAL-ADV7611EB2Z - Analog Devices Inc. Evaluation Board

The EVAL-ADV7611EB2Z from Analog Devices Inc. is a comprehensive evaluation platform designed for the ADV7611, a high-performance, low-power HDMI receiver that supports video resolutions up to 1080p and UXGA (1600 x 1200 at 60 Hz). This evaluation board facilitates the testing and development of various consumer and professional video applications, including home theater systems, digital signage, and video conferencing solutions.

Key Features:

• HDMI Receiver: The board is built around the ADV7611, which is capable of receiving HDMI 1.4b signals, providing a robust solution for high-definition audio and video reception.
• Multiple Video Formats: It supports a wide array of video formats and standards, including 3D video, ensuring compatibility with the latest multimedia content.
• Audio Support: The ADV7611 also processes audio formats, including I2S and S/PDIF, allowing for the extraction and transmission of high-quality audio streams alongside video.
• Configurability: Users can configure the ADV7611 through its I2C interface, which offers flexibility in customizing settings for specific use cases.
• Comprehensive Evaluation: The EVAL-ADV7611EB2Z provides access to all the input and output pins of the ADV7611, enabling thorough evaluation and testing of all features.
• Easy-to-Use: The evaluation board includes an on-board microcontroller for easy setup and control, making it user-friendly for both novice and experienced engineers.

Applications:

• Home Theater Systems
• Professional AV Systems
• Digital Signage
• Video Conferencing
• Video Broadcast Systems

With the EVAL-ADV7611EB2Z, developers and system integrators can accelerate their design process, ensuring faster time-to-market for products that require high-quality HDMI reception capabilities. The board is designed to demonstrate the performance of the ADV7611 and to provide a platform for system development and debugging, making it an essential tool for engineers working with advanced video and audio integration.
