Product Overview: HMC252QS24E by Analog Devices Inc.

The HMC252QS24E is a non-reflective Single Pole Six Throw (SP6T) switch designed by Analog Devices Inc. This high-performance component is tailored for applications requiring multi-throw switching with high isolation and low insertion loss. It operates over a broad frequency range from DC to 3 GHz, making it a versatile choice for diverse RF systems.

Key Features

• Frequency Range: The HMC252QS24E operates effectively across a wide frequency spectrum from DC to 3 GHz, accommodating various wireless communication standards.
• Insertion Loss: At a mid-band frequency of 1.5 GHz, the switch boasts a low insertion loss of typically 1.0 dB, ensuring signal integrity and minimal attenuation.
• Isolation: It delivers high isolation between ports, typically 50 dB at 1.5 GHz, which helps to prevent signal leakage and crosstalk in complex RF circuits.
• Non-Reflective Design: The non-reflective nature of the switch minimizes signal reflections, which is critical for maintaining the quality of high-speed RF signals.
• Switching Speed: The HMC252QS24E features fast switching speed, with a typical switching time of 6 microseconds, allowing for rapid signal routing in dynamic systems.
• Control Voltage: The switch operates with a single positive control voltage ranging from +3 to +5 V, simplifying the power supply requirements.

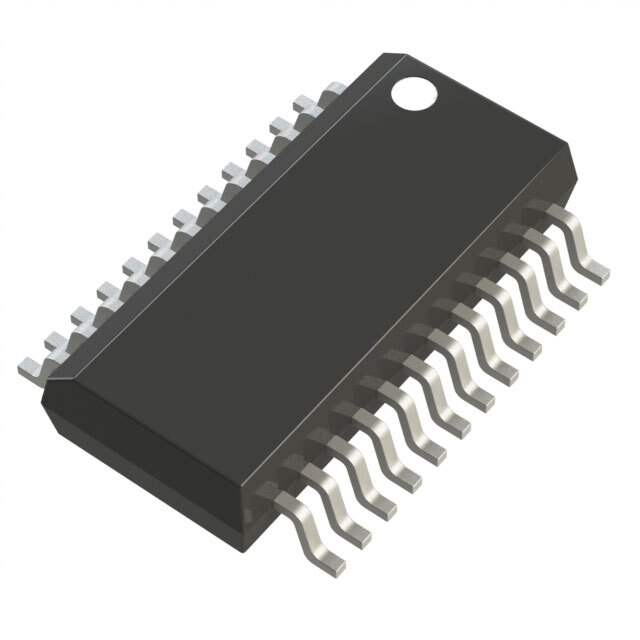

• Package: Housed in a compact 24-lead QSOP package, the HMC252QS24E is space-efficient and suitable for dense circuit layouts.

Applications

The HMC252QS24E is well-suited for a variety of applications, including:

• Wireless infrastructure (GSM, CDMA, LTE)
• Test equipment and sensors
• Satellite communications systems
• Fiber optic systems
• Military and space applications

With its robust performance and versatility, the HMC252QS24E from Analog Devices Inc. is an excellent choice for developers and engineers looking to incorporate a reliable SP6T switch into their RF designs.
