Analog Devices Inc. Presents: HMC341LC3BTR

The HMC341LC3BTR is a high-performance, non-reflective Single Pole Four Throw (SP4T) switch from Analog Devices Inc., a leading company in the design and manufacturing of high-performance integrated circuits. This state-of-the-art component is designed to cater to a wide range of applications, including but not limited to, microwave radio, military radios, test equipment, and satellite communications systems.

Constructed with gallium arsenide (GaAs) MMIC technology, the HMC341LC3BTR offers exceptional RF performance across a broad frequency range from DC to 20 GHz. This makes it an ideal choice for applications requiring high-frequency operation with minimal signal loss. Its non-reflective design ensures that signals are switched with high isolation and low insertion loss, which is crucial for maintaining signal integrity in complex RF systems.

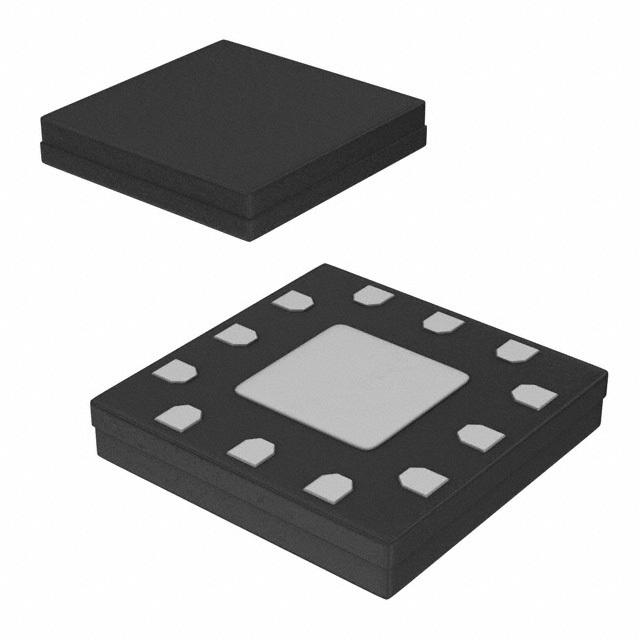

The HMC341LC3BTR is housed in a compact 3x3 mm ceramic QFN package, which not only saves valuable board space but also provides excellent RF and thermal performance. Its small footprint is particularly beneficial for designs where space is at a premium, without compromising on the quality of the RF path.

Key features of the HMC341LC3BTR include:

• Wide frequency range operation (DC to 20 GHz)
• High isolation (45 dB typical at 20 GHz)
• Low insertion loss (2.5 dB typical at 20 GHz)
• Fast switching speed (6 ns typical)
• Single positive control voltage (0/+5V)
• Non-reflective design
• RoHS compliant and 260°C reflow compatible

With its robust design and superior performance, the HMC341LC3BTR is an exemplary choice for designers who need a reliable and efficient SP4T switch. Analog Devices Inc. ensures that this product, like all their offerings, meets stringent quality standards and is capable of withstanding the demands of the most challenging RF and microwave applications.

Whether you are developing cutting-edge communication systems or upgrading existing equipment, the HMC341LC3BTR from Analog Devices Inc. is a component that promises to deliver exceptional performance and reliability.
