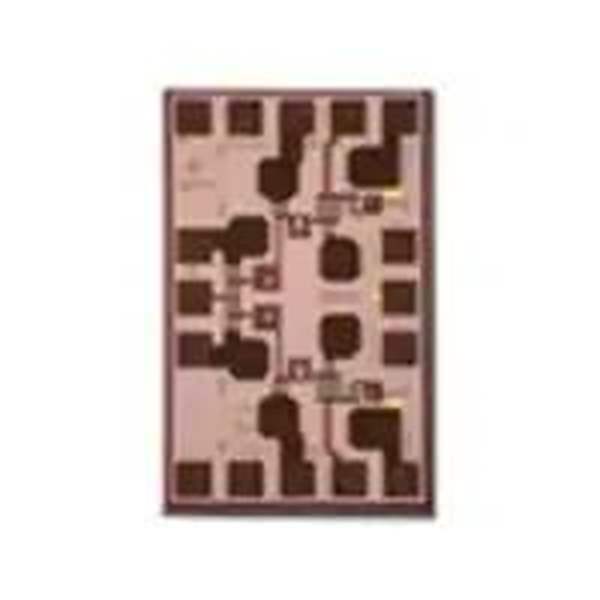

The HMC347 from Analog Devices Inc. is a high-performance Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) Single Pole Double Throw (SPDT) switch. This device operates within the DC to 40 GHz frequency range, making it an ideal component for a wide variety of RF and microwave applications including test equipment, military radios, and fiber optics.

Key Features

• Frequency Range: This switch operates smoothly across a wide frequency range from DC to 40 GHz, ensuring versatility across numerous applications.
• Insertion Loss: It offers a low insertion loss, typically 2.5 dB at 40 GHz, which helps to maintain signal integrity through the switching process.
• Isolation: The HMC347 provides excellent isolation, typically 40 dB at 40 GHz, which minimizes crosstalk between the RF paths.
• Non-Reflective Design: Its non-reflective design with 50-ohm matched ports reduces signal reflections, which is critical for maintaining the quality of high-speed signals.
• Switching Speed: With a fast switching speed of 6 ns, this device is suitable for applications that require rapid signal routing changes.
• Control Voltage: The switch operates with a dual control voltage of 0/-5V, providing a straightforward interface for digital control logic.

Applications

• Fiber Optic Systems
• Test and Measurement Equipment
• Microwave Radio
• Space and Defense Electronics
• Satellite Communications Systems

The HMC347 is available in a compact die size, allowing for integration into systems where space is at a premium. With its broad frequency range, low insertion loss, and high isolation, the HMC347 provides a high level of performance for RF switching applications. Analog Devices Inc. ensures that this component meets the stringent requirements of the most demanding environments, offering reliability and durability for professional-grade systems.
