ADRF5300BCCZN by Analog Devices Inc.

The ADRF5300BCCZN is a high-performance, reflective, SPDT (Single Pole Double Throw) RF switch designed by Analog Devices Inc., a leader in the semiconductor industry. This product is a testament to Analog Devices' commitment to providing advanced solutions for RF and microwave applications, where signal routing and conditioning are crucial for system performance.

The ADRF5300BCCZN operates over a broad frequency range from 3.7 GHz to 16 GHz, making it an excellent choice for a wide variety of applications, including but not limited to wireless infrastructure, radar systems, satellite communications, and test equipment. Its wide frequency range ensures versatility and adaptability across multiple platforms and requirements.

With an insertion loss of typically 1.1 dB at 14 GHz, the ADRF5300BCCZN maintains signal integrity by minimizing the loss of power as the signal passes through the switch. Furthermore, the product boasts a high isolation of 35 dB at 14 GHz, which ensures minimal crosstalk between the signal paths and improves overall system performance.

The switch is also characterized by its non-reflective design, which is essential for applications where the reflection of unused ports can cause signal degradation or interference. This feature is particularly important in systems where maintaining the purity of the signal path is critical.

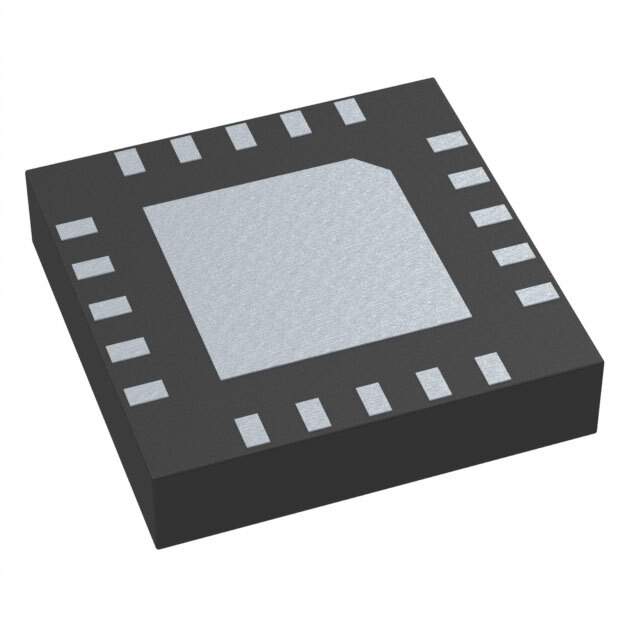

Constructed with a silicon-on-insulator (SOI) process, the ADRF5300BCCZN offers excellent electrostatic discharge (ESD) performance, enhancing its durability and reliability in the field. The switch comes in a compact 3 mm x 3 mm LGA package, which is conducive to space-constrained applications and allows for efficient use of PCB real estate.

For ease of integration into various systems, the ADRF5300BCCZN operates on a single positive supply voltage ranging from +3.3 V to +5 V and includes a CMOS compatible control interface. This ensures compatibility with a broad range of logic families and simplifies the design-in process.

Overall, the ADRF5300BCCZN by Analog Devices Inc. is a robust and versatile RF switch that offers excellent performance for high-frequency applications, encapsulating the innovation and quality that customers have come to expect from Analog Devices.
