ADRF5300BCCZN-R7

Part No ADRF5300BCCZN-R7
Manufacturer Analog Devices Inc.
Catalog RF Switches
Description SILICON SPDT SWITCH, REFLECTIVE, / RF Switch IC General Purpose SPDT 50Ohm 20-LGA (3x3)
Datasheet
Sample
ECAD Module
Need Help

Products specifications

Category RF and Wireless - RF Switches
Mfr Analog Devices Inc.
Package Tape & Reel
RF Type General Purpose
Circuit SPDT
Frequency Range 24GHz ~ 32GHz
Isolation 38dB
Insertion Loss 1.1dB
Test Frequency 32GHz
IIP3 65dBm
Impedance 50Ohm
Voltage - Supply 3.15V ~ 3.45V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount

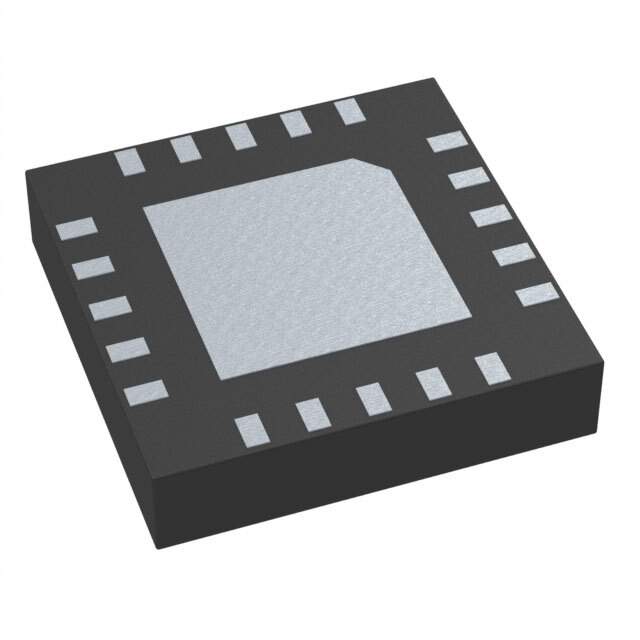

Package / Case 20-VFLGA Exposed Pad
Supplier Device Package 20-LGA (3x3)
Base Product Number ADRF5300
Standard Package 1,500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1345500-ADRF5300BCCZN-R7

Description

The ADRF5300BCCZN-R7 is a high-performance, reflective SPDT (Single Pole Double Throw) switch from Analog Devices Inc., designed for use in a wide range of RF and microwave applications. This device is part of the company's extensive portfolio of RF solutions that cater to the demanding requirements of modern wireless communication systems.

Key Features

  • Frequency Range: The ADRF5300BCCZN-R7 operates over a broad frequency range, ensuring versatility across various applications, including cellular infrastructure, wireless backhaul, and aerospace and defense systems.
  • High Isolation: With excellent isolation characteristics, this switch minimizes signal leakage between the RF ports, providing a clear and distinct signal path for high-quality performance.
  • Low Insertion Loss: The low insertion loss feature of the ADRF5300BCCZN-R7 ensures minimal signal attenuation, preserving signal integrity and strength across the RF pathway.
  • High Linearity: The device offers high linearity, which is critical for maintaining signal fidelity and reducing distortion in complex RF systems.
  • Power Handling: It is capable of handling high power levels, making it suitable for high-power applications without compromising performance.
  • Control Interface: The switch is controlled via a single-pin control interface, simplifying integration and reducing the complexity of the overall design.

Applications

The ADRF5300BCCZN-R7 is ideal for various applications where RF performance is critical. It is commonly used in:

  • Cellular infrastructure equipment
  • Wireless backhaul systems
  • Test and measurement setups
  • Phased array antennas
  • Aerospace and defense communication systems

Package and Quality

This switch comes in a compact package, allowing for easy integration into space-constrained designs. Analog Devices Inc. is known for its commitment to quality, and the ADRF5300BCCZN-R7 is manufactured to meet high industry standards, ensuring reliability and performance in demanding environments.

Conclusion

The ADRF5300BCCZN-R7 from Analog Devices Inc. represents a blend of performance, efficiency, and reliability. It is a testament to the company's dedication to providing innovative RF solutions that meet the evolving needs of modern communication technologies.
