The HMC425ALP3E from Analog Devices Inc. is a high-performance, digitally controlled, monolithic Voltage Variable Attenuator (VVA) which operates from DC to 4 GHz. This product is designed to meet the needs of varied applications including base station, Cellular/3G, WiMAX/4G, test equipment, sensors, and other RF-related applications.

This VVA offers a wide attenuation range of 0 to 31 dB with an excellent step resolution of 0.5 dB. It is capable of maintaining a high level of accuracy and repeatability throughout its entire range of operation. The HMC425ALP3E is characterized by its remarkable linearity and low insertion loss, making it a suitable choice for both amplitude control and precise signal leveling in complex RF systems.

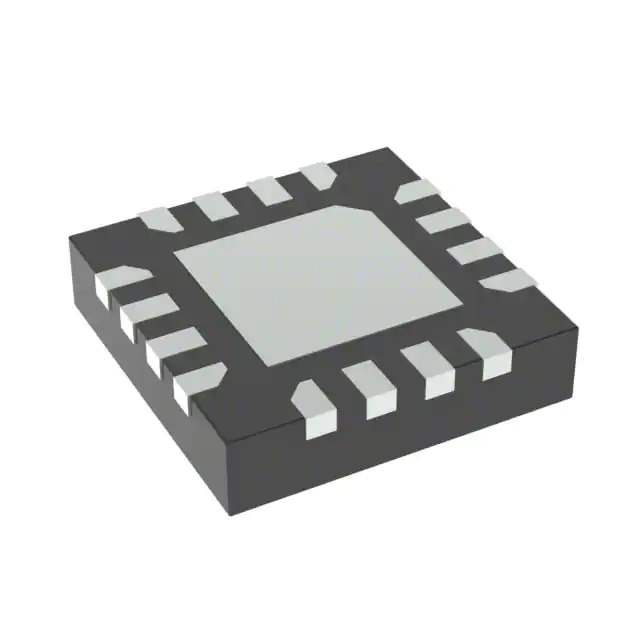

Constructed with Silicon-Germanium (SiGe) technology, the HMC425ALP3E is housed in a compact 3x3 mm QFN leadless package, which allows for a space-saving design in dense circuit boards. Its robust design is optimized for a supply voltage of +5V and features a power-up control mechanism for additional system flexibility.

The device is controlled via a serial or parallel interface, which provides ease of integration into a variety of systems. The parallel control interface allows for rapid attenuation state changes, while the serial control interface minimizes the number of required control lines. This versatility ensures that the HMC425ALP3E can be seamlessly incorporated into both new designs and existing systems looking for an upgrade in performance.

Key features of the HMC425ALP3E include:

• Frequency Range: DC - 4 GHz
• Attenuation Range: 0 to 31 dB
• Attenuation Step: 0.5 dB
• Insertion Loss: 1.5 dB typical at 2 GHz
• Single Positive Supply: +5V
• Control Interface: Serial or Parallel
• Package: 3x3 mm QFN

Overall, the HMC425ALP3E stands out for its fine attenuation resolution, wide dynamic range, and ease of use, making it an excellent choice for designers looking to enhance the performance of their RF communication systems.
