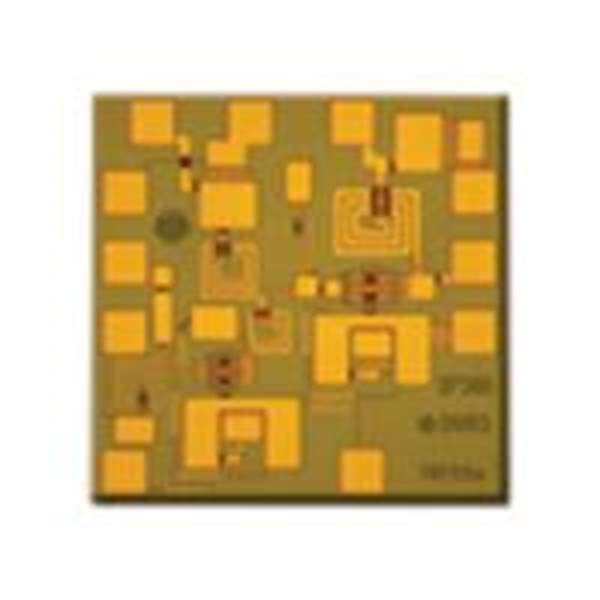

The HMC441 from Analog Devices Inc. is a high-performance, gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC) amplifier designed to operate across a wide frequency range. This versatile amplifier is suitable for a variety of applications, including test and measurement systems, point-to-point radios, and military end-uses.

Key Features

• Frequency Range: The HMC441 delivers consistent performance across a broad frequency range from 6 GHz to 20 GHz, making it an ideal choice for diverse RF and microwave applications.
• Gain: It offers a high gain of 15 dB which ensures strong signal amplification, essential for maintaining signal integrity across long distances or through various transmission mediums.
• Output Power: With an output power of +17 dBm at 1 dB compression point, the HMC441 provides robust output levels to drive subsequent stages in the signal chain without significant distortion.
• Supply Voltage: The device operates on a supply voltage of +5V, aligning with common system power rails and simplifying power supply design.
• Power Added Efficiency: The HMC441 is designed for power efficiency, which is critical in battery-powered or energy-conscious applications.
• Package: It comes in a compact, RoHS-compliant, 3x3 mm surface-mount leadless package that is compatible with standard automated assembly processes, aiding in ease of integration into various system designs.

Applications

The HMC441 is engineered to meet the requirements of a wide range of RF and microwave applications. Its high gain and broad frequency range make it suitable for:

• Fiber Optic
• Test and Measurement Equipment
• Military and Space
• Telecommunications
• Satellite VSAT

Conclusion

Analog Devices' HMC441 MMIC amplifier is a testament to the company's commitment to providing high-quality, high-performance components for the RF and microwave industry. With its wide frequency range, high gain, and efficient design, the HMC441 is an excellent choice for professionals seeking reliable and versatile amplification solutions.
