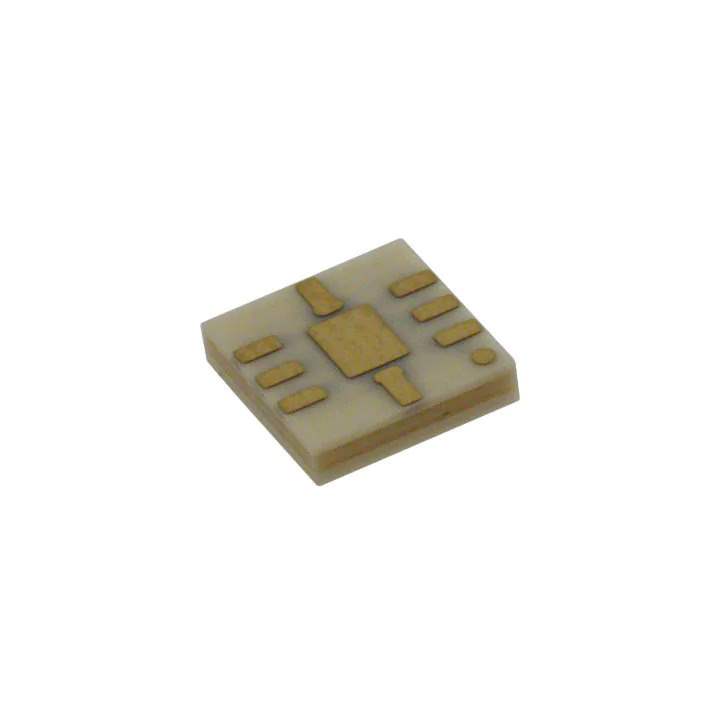

The HMC442LM1 from Analog Devices Inc. is a high-performance, passive double-balanced mixer designed to meet the demands of RF and microwave applications. This versatile component is a fundamental building block in the design of communication systems, offering exceptional frequency conversion and signal processing capabilities.



Key Features:




• Frequency Range: The HMC442LM1 operates over a wide frequency range, making it suitable for a variety of applications from IF (Intermediate Frequency) to RF (Radio Frequency) and LO (Local Oscillator) frequencies, ensuring flexibility in design.

• Conversion Loss: With a low conversion loss, this mixer maintains signal integrity and minimizes the need for additional amplification, leading to more efficient system design and power consumption.

• Isolation: Excellent LO to RF and LO to IF isolation figures are inherent in the design, which reduces signal leakage and enhances overall system performance.

• Linearity: The HMC442LM1 showcases high linearity, ensuring that it can handle a wide range of input signal levels without significant distortion, crucial for maintaining signal fidelity.

• Package: It comes in a compact surface-mount package, the LM1, which is conducive to space-constrained applications and allows for easier integration into a variety of circuit designs.




Applications:



The HMC442LM1 is ideal for use in:




• Point-to-point and point-to-multipoint radios

• Test equipment and sensors

• Military and space applications

• Wireless infrastructure




Technical Specifications:

                        Parameter            Specification                            Frequency Range            6 GHz to 14 GHz                            Conversion Loss            9 dB typical                            LO to RF Isolation            36 dB typical                            LO to IF Isolation            30 dB typical                            Input IP3            +18 dBm typical

For designers and engineers looking for a reliable and high-quality mixer, the HMC442LM1 from Analog Devices Inc. provides an exceptional balance of performance and flexibility, making it a top choice for advanced RF and microwave systems.
