Product Overview: HMC594LC3B from Analog Devices Inc.

The HMC594LC3B is a high-performance, GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC Pulsed Power Amplifier from Analog Devices Inc., designed to offer exceptional output power and gain while maintaining high efficiency and linearity. This amplifier operates within the 6 to 18 GHz frequency range, making it an ideal choice for a wide range of applications, including radar, test instrumentation, and communication systems.

Key Features

• Frequency Range: 6 - 18 GHz, providing broad coverage for versatile use in multiple high-frequency applications.
• Output Power: Delivers +29 dBm of saturated output power, ensuring strong signal amplification.
• Gain: Offers 17 dB of small signal gain, which translates to robust signal amplification capabilities.
• Efficiency: High efficiency design, reducing power consumption and heat dissipation.

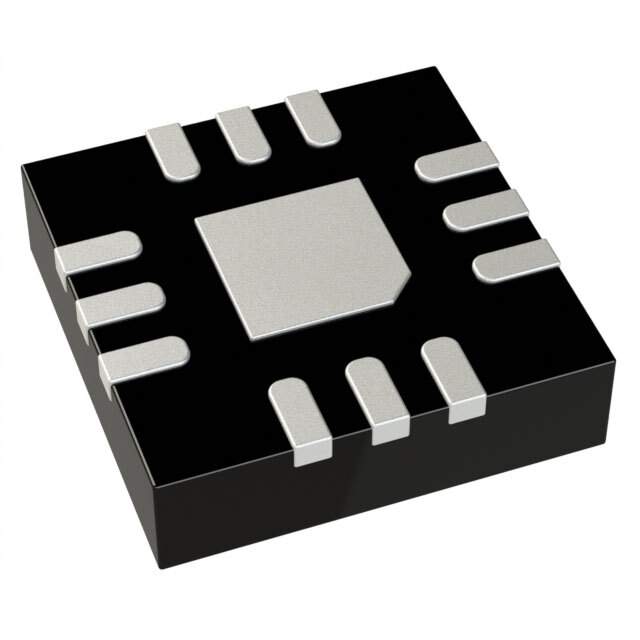

• Package: Housed in a compact 3x3 mm ceramic QFN package, allowing for integration into space-constrained applications.

Applications

The HMC594LC3B is versatile enough to be used in a variety of high-frequency applications, including:

• Electronic Warfare (EW) and Electronic Counter Measures (ECM)
• Point-to-point and point-to-multipoint radios
• Fiber optic applications
• Test equipment and sensors
• Military and space applications

Quality and Reliability

Analog Devices Inc. is renowned for their commitment to quality and the HMC594LC3B is no exception. The product is manufactured with the highest standards to ensure reliable performance in even the most demanding environments. With its robust construction and proven design, the HMC594LC3B stands as a testament to Analog Devices Inc.'s dedication to excellence in high-frequency amplification solutions.

For detailed specifications, application notes, and additional resources, potential users are encouraged to visit Analog Devices Inc.'s official website or contact their local sales representative.
