The HMC448LC3BTR from Analog Devices Inc. is a high-performance, GaAs MMIC (Monolithic Microwave Integrated Circuit) amplifier that operates within the frequency range of DC to 20 GHz. Designed to deliver exceptional performance in terms of gain, power, and efficiency, this amplifier is an ideal choice for a wide range of applications, including point-to-point radios, military and space, fiber optics, and test instrumentation.

Key Features

• Frequency Range: The HMC448LC3BTR operates from DC to 20 GHz, offering a broad frequency response suitable for various applications.
• Gain: It provides a high gain of 11 dB, ensuring strong signal amplification across its operating frequency range.
• Output Power: The device can deliver an output power of +22 dBm, making it capable of driving a wide range of components in signal chains.
• Supply Voltage: The amplifier operates on a supply voltage of +5 V, making it compatible with standard power supplies.

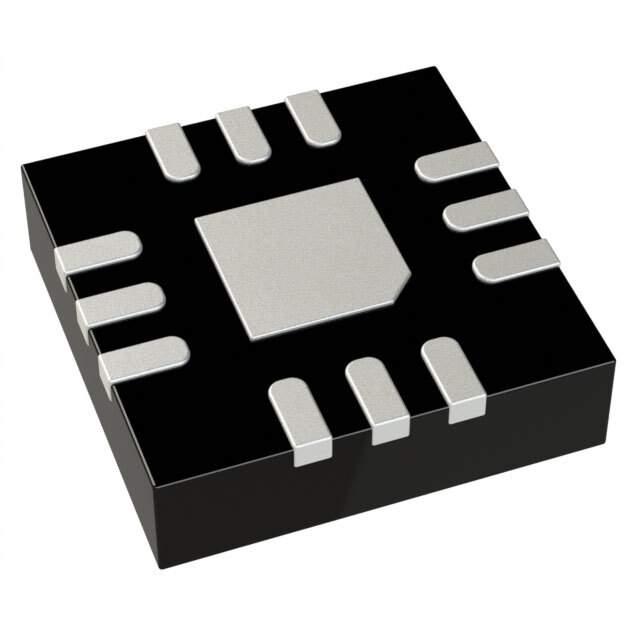

• Package: Housed in a compact 3x3 mm SMT package, the HMC448LC3BTR is designed for easy integration into space-constrained designs.

Applications

The versatility of the HMC448LC3BTR allows it to be used in various high-frequency applications:

• Telecommunication infrastructure, such as point-to-point and point-to-multipoint radios
• Military and defense systems, including radar and electronic warfare
• Space applications, such as satellite communications
• Fiber optic systems
• Test and measurement equipment

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the HMC448LC3BTR is no exception. It is manufactured with the highest standards to ensure performance and durability in even the most demanding environments. Whether used in commercial, industrial, or military applications, this amplifier is built to deliver consistent, reliable operation.
