The HMC451LC3TR-R5 from Analog Devices Inc. is a high-performance, GaAs PHEMT MMIC Medium Power Amplifier that operates within the frequency range of DC to 15 GHz. This versatile component is designed to deliver excellent gain, power, and efficiency in a compact 3x3 mm surface-mount package, making it an ideal choice for a wide range of applications including test instrumentation, military, space, fiber optics, and broadband telecom equipment.

Key Features

• Frequency Range: This amplifier is capable of operating over a wide frequency range from DC to 15 GHz, providing flexibility for various applications.
• Gain: It offers a high gain of 17 dB at 2 GHz, ensuring strong signal amplification.
• Output Power: The HMC451LC3TR-R5 delivers +27 dBm of saturated output power, which is conducive to a robust output signal.
• Power Added Efficiency: With a power added efficiency (PAE) of 25% at 2 GHz, this amplifier is designed for efficient operation, minimizing power loss and heat generation.

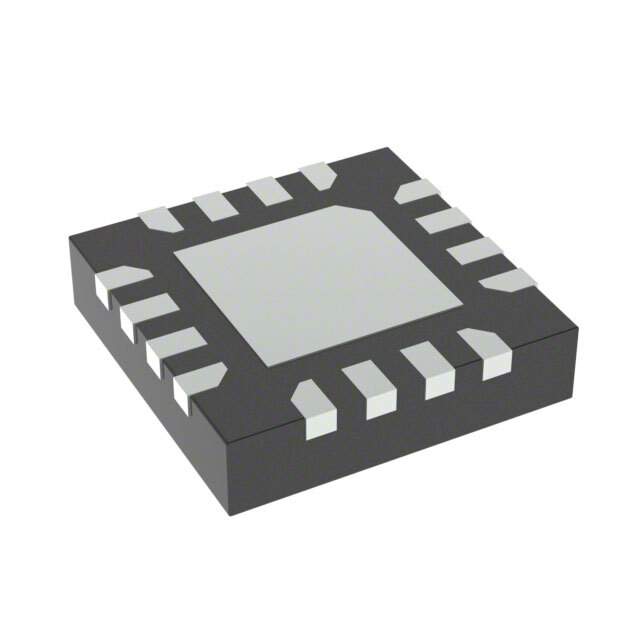

• Package: Housed in a RoHS-compliant, 3x3 mm QFN leadless package, it is suitable for space-constrained applications while ensuring environmental safety.

Applications

• Test Instrumentation
• Military and Space
• Fiber Optics
• Broadband Telecommunications

The HMC451LC3TR-R5 is a testament to Analog Devices Inc.'s commitment to providing cutting-edge technology for complex and demanding applications. Its robust performance, coupled with a compact and efficient design, makes it an excellent choice for designers looking to enhance their systems with a reliable and powerful amplifier. Whether it's for precise test equipment or rugged military hardware, the HMC451LC3TR-R5 stands ready to deliver the performance needed in today's advanced electronic environments.
