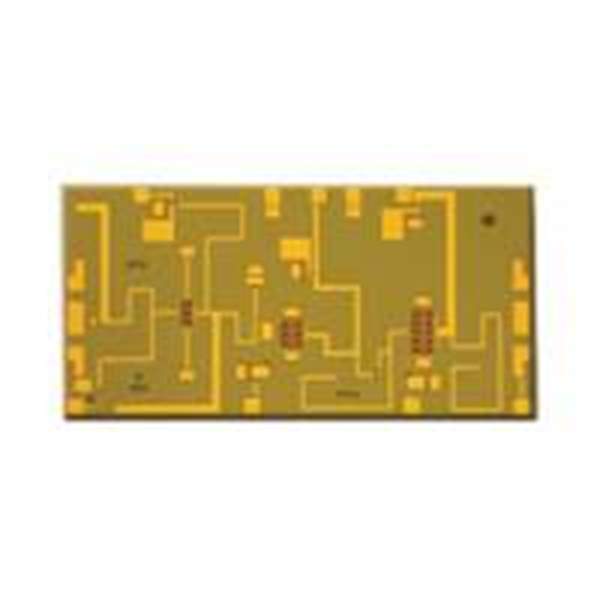

The HMC490-SX from Analog Devices Inc. is a high-performance GaAs MMIC PHEMT (pseudomorphic high electron mobility transistor) distributed power amplifier die that operates between DC to 20 GHz. This versatile amplifier offers a wide frequency range, making it suitable for a variety of applications including test instrumentation, military radar, EW (electronic warfare), ECM (electronic countermeasures), and space systems.

With its robust design, the HMC490-SX provides excellent gain and output power performance. It delivers 13 dB of gain with a +28 dBm output power at 1 dB gain compression (P1dB) and a 22 dBm output third-order intercept (OIP3) at 18 GHz. The input and output of the amplifier are matched to 50 Ohms with a return loss better than 12 dB, simplifying integration into a wide range of systems without the need for external matching components.

The HMC490-SX is fabricated using Analog Devices' proprietary gallium arsenide technology, which offers a high level of integration and reliability. This technology allows the amplifier to achieve a high level of performance in terms of gain flatness, which is typically ±0.5 dB over the full frequency range, ensuring consistent signal amplification across all frequencies.

Additionally, the HMC490-SX features a wide dynamic range and a balanced design that reduces even-order harmonics and improves isolation. This makes the amplifier ideal for complex signal chains where linearity and high dynamic range are critical. The die is passivated for increased reliability and moisture protection, ensuring that it can withstand harsh environments and maintain performance over time.

For ease of implementation, the HMC490-SX is available in a bare die form, allowing for flexible integration into custom packages or multi-chip modules (MCMs). This provides designers with the freedom to incorporate the amplifier into a variety of system configurations, taking advantage of its high performance and compact size.

In summary, the HMC490-SX is a testament to Analog Devices' commitment to providing advanced RF and microwave signal processing solutions. Its high performance, wide frequency range, and ease of integration make it a top choice for designers seeking to enhance their high-frequency signal chains.
