The HMC546LP2E from Analog Devices Inc. is a high-performance, double-balanced mixer designed to provide exceptional RF and LO frequency range coverage. This versatile component is engineered to cater to a wide variety of applications, including cellular/4G infrastructure, test equipment, and satellite communications systems.

Key Features

• Frequency Range: The mixer operates over an RF and LO frequency range of 6 GHz to 16 GHz, making it suitable for a broad spectrum of RF applications.
• Conversion Loss: With a typical conversion loss of 8 dB, the HMC546LP2E maintains signal integrity by minimizing losses during the frequency conversion process.
• LO/RF Isolation: The device offers excellent LO to RF isolation of 40 dB, ensuring minimal leakage between the local oscillator and the RF signal path.

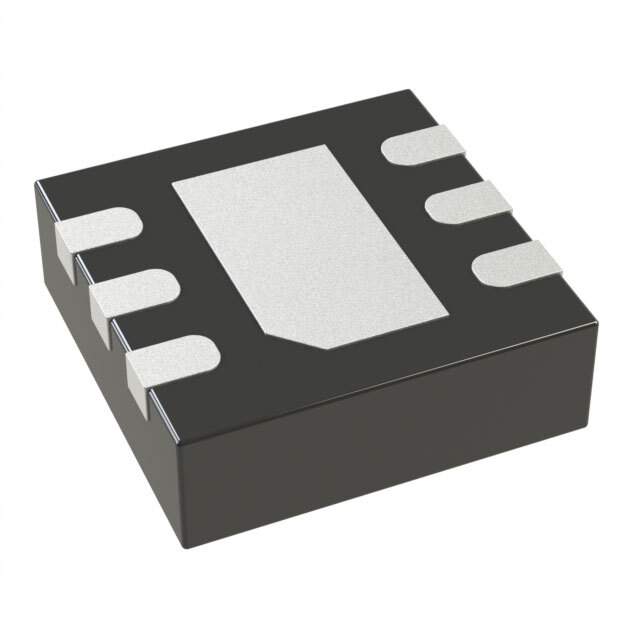

• Package: Housed in a compact 2x2 mm QFN package, the HMC546LP2E is optimized for space-constrained applications while providing robust performance.
• IF Bandwidth: With an intermediate frequency (IF) bandwidth of DC to 3 GHz, this mixer supports a wide range of frequencies for down-conversion and up-conversion applications.

Applications

The HMC546LP2E is well-suited for:

• Point-to-point and point-to-multipoint radios
• Military and space applications
• Test equipment and sensors
• Wireless infrastructure

Performance and Quality

Analog Devices Inc. is renowned for its commitment to high-quality products, and the HMC546LP2E is no exception. This mixer is designed to perform reliably in demanding environments and is manufactured with precision to ensure consistent, high-quality performance across all units.

Conclusion

The HMC546LP2E from Analog Devices Inc. stands out as a versatile and reliable component for any RF engineer's toolkit. Its wide frequency range, low conversion loss, and excellent isolation characteristics make it an ideal choice for advanced RF mixing applications.
