Analog Devices Inc. HMC733LC4BTR Voltage-Controlled Oscillator

The HMC733LC4BTR from Analog Devices Inc. is a high-performance Voltage-Controlled Oscillator (VCO) designed to address the needs of RF and microwave communication systems. This VCO operates within the frequency range of 2.6 GHz to 3.2 GHz, providing a wide tuning range that is essential for applications such as satellite communications, point-to-point radios, and military end-use.

Constructed with gallium arsenide (GaAs) Heterojunction Bipolar Transistor (HBT) monolithic microwave integrated circuit (MMIC) technology, the HMC733LC4BTR offers excellent phase noise performance, which is crucial for maintaining signal integrity in high-frequency applications. The VCO exhibits a phase noise of -102 dBc/Hz at 100 kHz offset, ensuring a clean and stable signal source for system designers.

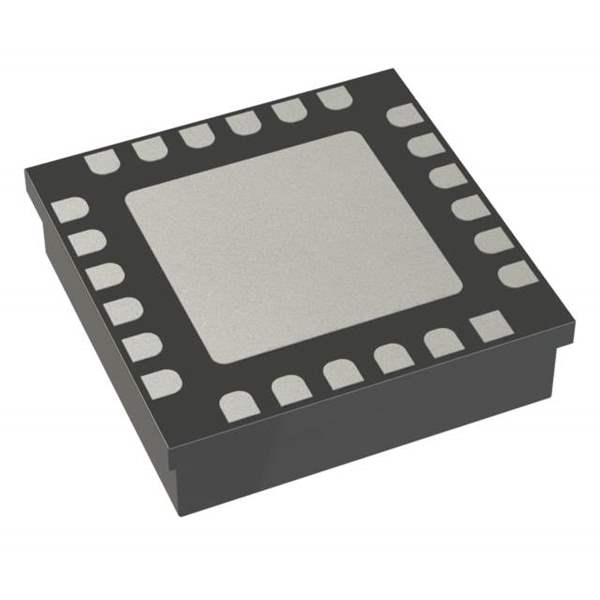

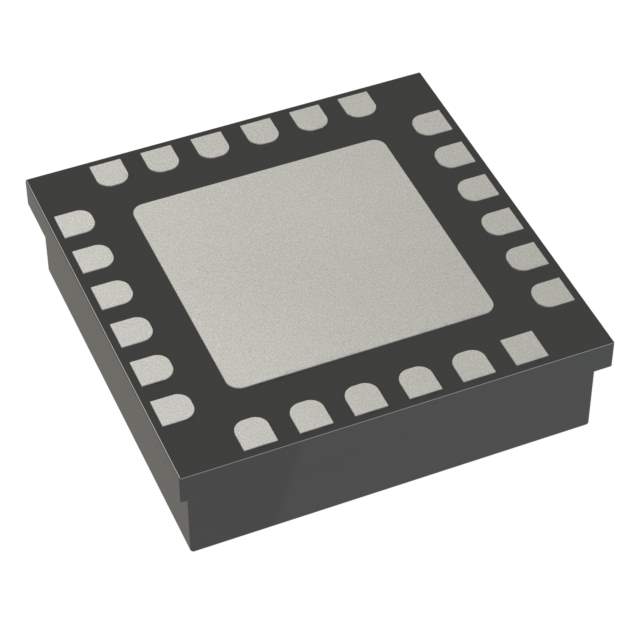

The device is housed in a compact 4x4 mm leadless surface mount package, which is ideal for space-constrained applications. The HMC733LC4BTR is also RoHS compliant, adhering to the latest environmental standards and regulations. Its leadless package design also contributes to improved thermal performance, allowing for better heat dissipation and reliability over a wide temperature range of -40°C to +85°C.

With a single supply voltage of +5V and a typical current consumption of 85mA, the HMC733LC4BTR is designed for efficient operation. The VCO's integrated resonator, negative resistance device, and varactor diode ensure a simplified design process, reducing the need for external components and making it easier for engineers to integrate into their systems.

The HMC733LC4BTR also features an analog tuning port, which allows for precise frequency control via an applied tuning voltage. This flexibility makes it an ideal choice for frequency modulation and agile frequency synthesis in complex RF systems. Analog Devices Inc. provides comprehensive technical support and documentation, ensuring that designers can fully utilize the capabilities of the HMC733LC4BTR in their applications.

In summary, the HMC733LC4BTR Voltage-Controlled Oscillator from Analog Devices Inc. is a robust and high-performance component that offers excellent phase noise characteristics, a wide operating frequency range, and efficient power consumption, all in a compact package suitable for a variety of demanding RF and microwave applications.
