Product Overview: HMC788ALP2ETR by Analog Devices Inc.

The HMC788ALP2ETR is a high-performance, wideband, fully monolithic microwave integrated circuit (MMIC) distributed amplifier designed for a broad range of radio frequency (RF) and microwave applications. Manufactured by Analog Devices Inc., a leader in precision high-performance electronics, this product exemplifies their commitment to delivering cutting-edge technology in compact, reliable form factors.

Constructed using an advanced Gallium Arsenide (GaAs) Pseudomorphic High Electron Mobility Transistor (pHEMT) process, the HMC788ALP2ETR offers exceptional gain, noise figure, and output power performance over a wide frequency range. This makes it an ideal choice for applications such as electronic warfare, radar, test instrumentation, and satellite communications, where high linearity and efficiency are paramount.

The amplifier operates across a frequency range of 2 GHz to 20 GHz, providing a typical gain of 15 dB with a gain flatness of ±1 dB, which is critical for maintaining signal integrity across various frequencies. Its output power at 1 dB compression is a robust +19 dBm, ensuring strong signal transmission without significant distortion.

The HMC788ALP2ETR also boasts a low noise figure of 3 dB, improving system sensitivity and enabling the detection of weak signals amidst noise. Additionally, the amplifier has an output third-order intercept point (OIP3) of +30 dBm, indicative of its ability to handle high power without significant nonlinear distortion.

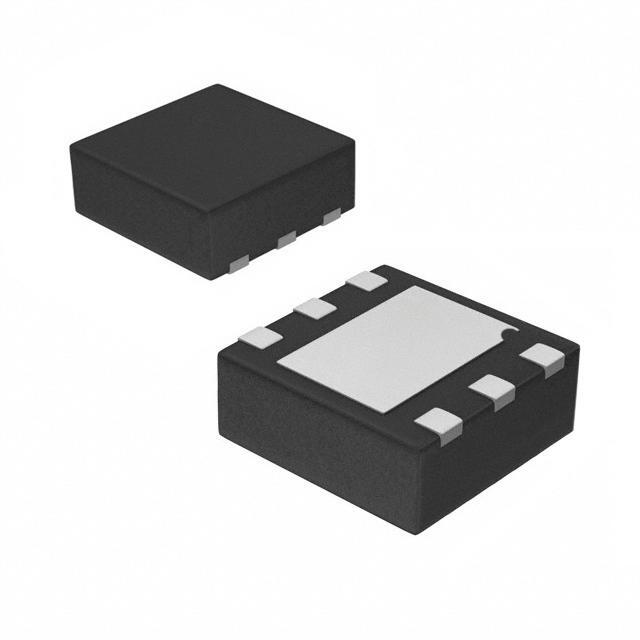

Encased in a compact 2x2 mm surface-mount leadless package (LP2), the HMC788ALP2ETR is designed for easy integration into a variety of circuit boards, saving valuable space without sacrificing performance. Its surface-mount form factor aligns with modern manufacturing processes, facilitating efficient assembly and soldering onto printed circuit boards (PCBs).

With its robust temperature range of -40°C to +85°C, the HMC788ALP2ETR is well-suited for operation in challenging environmental conditions, maintaining consistent performance where temperature fluctuations are a concern.

For designers and engineers seeking a high-quality, versatile amplifier capable of meeting the demands of today’s high-frequency applications, the HMC788ALP2ETR from Analog Devices Inc. stands out as a superior choice, delivering reliability and performance in a sophisticated, miniaturized package.
