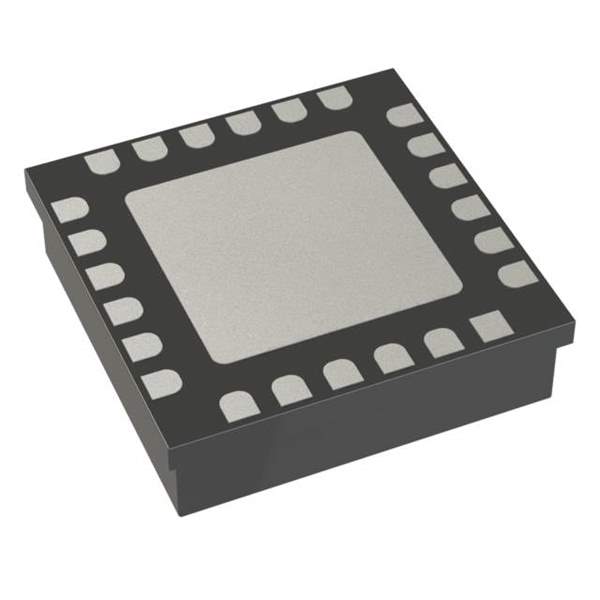

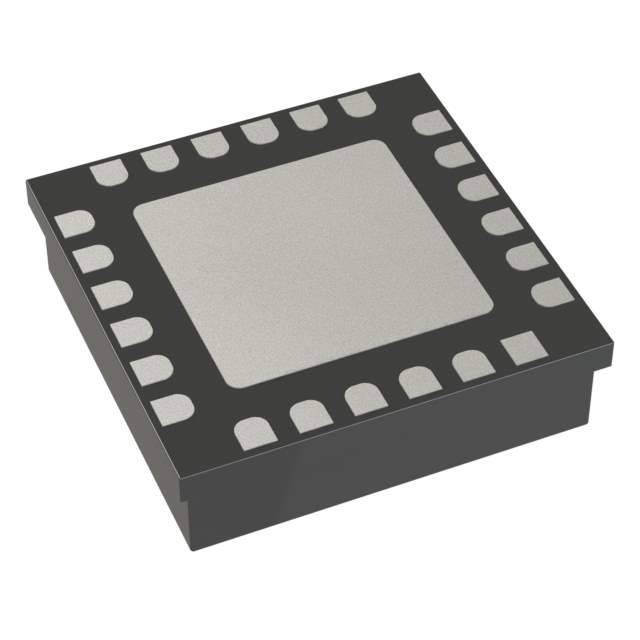

Product Overview: HMC911LC4B from Analog Devices Inc.

The HMC911LC4B is a high-performance, GaAs MMIC PHEMT Distributed Power Amplifier die which operates between DC to 28 GHz. This versatile amplifier from Analog Devices Inc. is designed to offer excellent dynamic range with a 13 dB gain, +28 dBm output IP3, and +17 dBm of output power at 1 dB gain compression.

Key Features

• Frequency Range: The HMC911LC4B operates effectively across a wide frequency spectrum from DC to 28 GHz, making it suitable for diverse applications, including test instrumentation, military, and space.
• High Gain: With a 13 dB gain, this amplifier can significantly boost signal strength, ensuring clear transmission and reception over a variety of communication channels.
• Output Power: It offers a solid +17 dBm of output power at 1 dB gain compression, providing reliable and consistent performance for demanding applications.
• Output IP3: The device features an impressive +28 dBm output third-order intercept point (IP3), indicative of its excellent linearity and low distortion characteristics.

Applications

The HMC911LC4B is ideal for a range of applications, including:

• Fiber Optic
• Test Instrumentation
• Microwave Radio & VSAT
• Military & Space
• Telecom Infrastructure

Quality and Reliability

Adhering to the high standards set by Analog Devices Inc., the HMC911LC4B is built for durability and reliability. It is capable of withstanding the rigorous demands of both commercial and military applications, ensuring a product that performs consistently over time.

Package and Integration

The HMC911LC4B is offered as a bare die, providing flexibility for integration into various systems. Its compact form factor and high level of integration make it an excellent choice for designs where space is at a premium and performance cannot be compromised.

For detailed specifications and application support, visit the Analog Devices Inc. website or contact their technical support team for assistance.
