LT1965EMS8E - Low Noise, Low Dropout Regulator from Analog Devices Inc.

The LT1965EMS8E is a high-performance, low dropout linear regulator from Analog Devices Inc., designed to deliver a continuous output current of up to 1.1A with a dropout voltage of just 300mV at full load. This makes it an excellent choice for applications requiring a clean, stable power supply with minimal power loss.

One of the standout features of the LT1965EMS8E is its low noise output, which is critical for sensitive RF and precision analog circuits. With an output noise as low as 40µV_RMS over a 10Hz to 100kHz bandwidth, the LT1965EMS8E ensures a clean voltage supply, free from the interference that can degrade performance in high-end electronics.

The device operates with an input voltage range from 1.8V to 20V, providing the flexibility needed to support a variety of supply voltages. Its wide input range, combined with its ability to operate with very small ceramic output capacitors, makes it a versatile choice for both portable and stationary applications.

The LT1965EMS8E also features fast transient response and stability with low ESR, ceramic output capacitors as low as 10µF, which further enhances its performance in rapidly changing load conditions. Additionally, the regulator is stable with aluminum electrolytic or tantalum capacitors if desired for specific design requirements.

Protection features of the LT1965EMS8E include internal current limiting to protect against overcurrent conditions and thermal limiting to ensure the device operates within safe temperature ranges. Furthermore, the regulator has an adjustable output from 1.2V to 19.5V, which allows for a high degree of flexibility in circuit design.

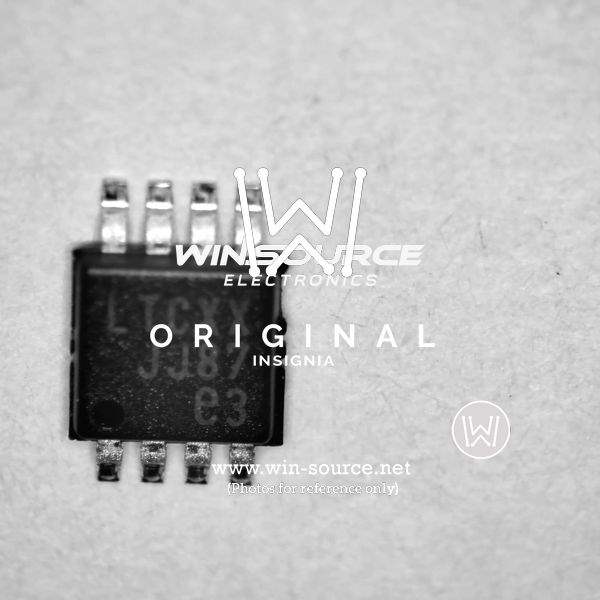

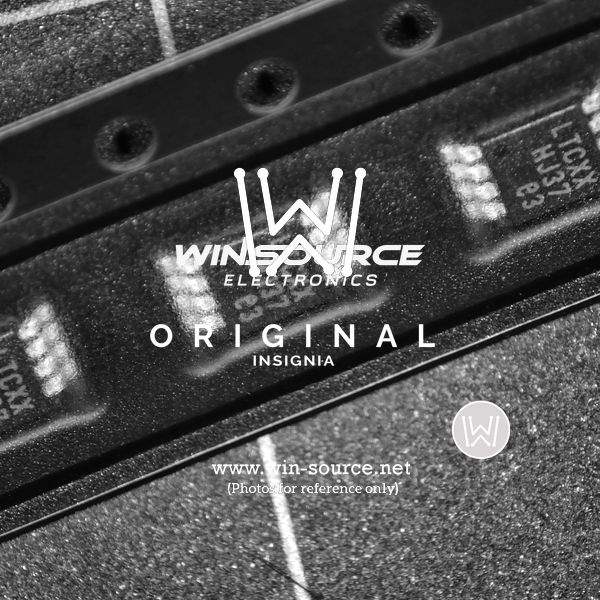

The LT1965EMS8E is packaged in an MSOP-8E, which is a compact, thermally enhanced surface-mount package. This package is designed to optimize the thermal performance and power dissipation, ensuring reliable operation even in environments with limited airflow or higher ambient temperatures.

Overall, the LT1965EMS8E from Analog Devices Inc. is an ideal solution for applications requiring a high-quality, low noise, and low dropout voltage regulator. It provides designers with a robust power management solution that combines performance, flexibility, and reliability.
