The LT3032IDE-15#PBF is a high-performance, dual-channel linear regulator from Analog Devices Inc., designed to provide both positive and negative low noise and low dropout voltages. This regulator is a perfect solution for applications that require precise power management with minimal noise interference, such as sensitive analog circuits, RF applications, and mixed-signal designs.

Key Features

• Dual Output Voltages: This device offers two independent regulated outputs, each capable of delivering up to 150mA of continuous output current. The positive output can be set from 1.22V to 20V, and the negative output can be set from -1.22V to -20V.
• Low Dropout Voltage: The LT3032IDE-15#PBF boasts a low dropout voltage, ensuring efficient operation even when the input-to-output voltage differential is minimal.
• Low Noise: With its ultra-low noise performance, the regulator maintains a clean power supply, which is critical for maintaining the integrity of sensitive electronic circuits.
• High Voltage Capability: The device can handle a wide input voltage range, making it versatile for various applications that require different voltage levels.
• Independent Shutdown Inputs: Each output comes with an independent shutdown input, allowing for flexible power management and power-saving modes.
• Thermal Protection: The LT3032IDE-15#PBF is equipped with thermal shutdown and current limit features to protect the device under abnormal operating conditions.

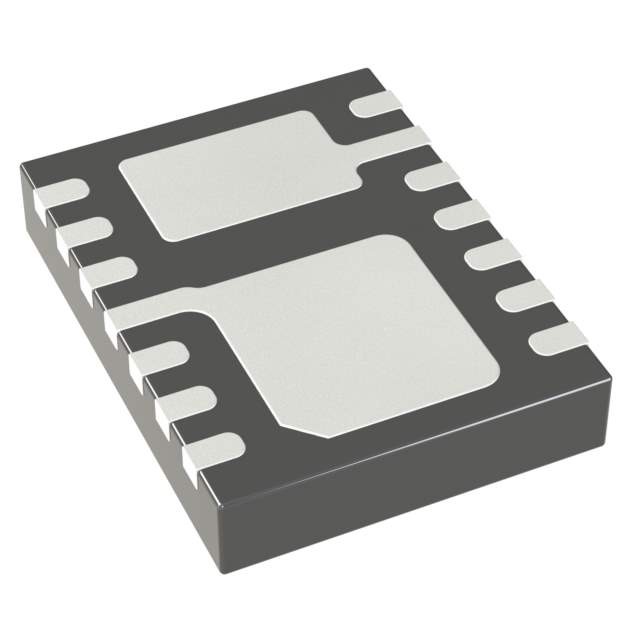

• Package: It is available in a 12-lead DFN package, which is suitable for space-constrained applications.

Applications

The versatility and high performance of the LT3032IDE-15#PBF make it an ideal choice for a wide range of applications, including but not limited to:

• Portable Battery-Powered Devices
• Instrumentation
• Medical Equipment
• Industrial Controls
• Low Noise Power Supplies

Analog Devices Inc. has engineered the LT3032IDE-15#PBF to meet the stringent requirements of modern electronic devices, ensuring reliability and precision in the most demanding situations.
