Analog Devices Inc.'s LT3466EFE#TRPBF Overview

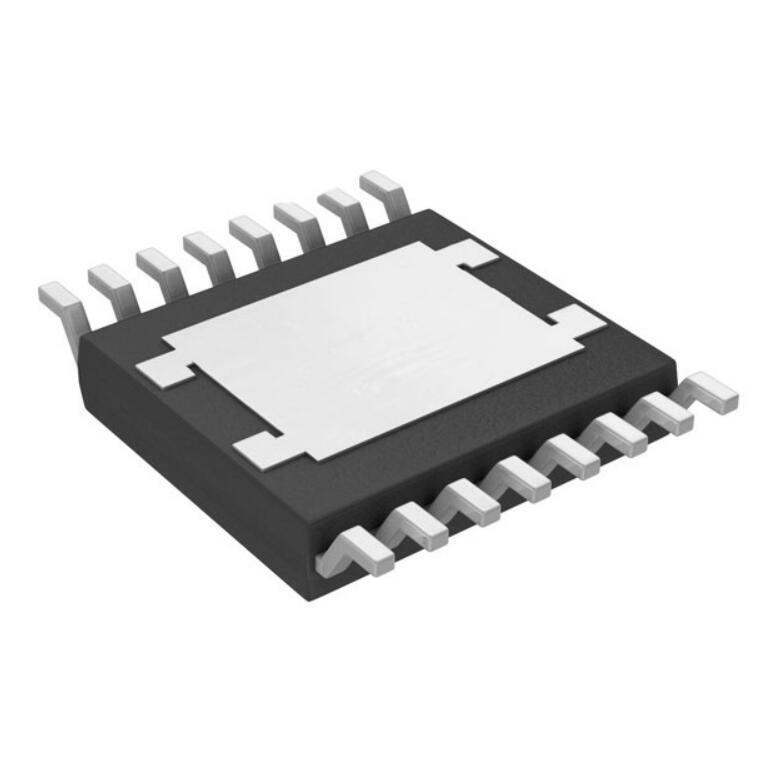

The LT3466EFE#TRPBF is a highly integrated, dual full-bridge DC/DC converter specifically designed to drive LEDs. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this product is part of their extensive range of power management solutions. The LT3466EFE#TRPBF comes in a compact, thermally enhanced 16-lead TSSOP package, offering efficient thermal performance suitable for a wide range of applications.

Key Features and Benefits

• High Integration: The LT3466EFE#TRPBF integrates two independent DC/DC converters, which can drive up to eight LEDs in series, providing a highly efficient solution for portable and fixed lighting applications.
• Wide Input Voltage Range: With an input voltage range of 2.5V to 16V, this device is versatile and can be powered from a variety of sources, making it ideal for battery-operated devices.
• High Efficiency: The device features high-efficiency operation with up to 90% efficiency, reducing power loss and heat generation, and extending battery life in portable applications.
• Adjustable Frequency: The switching frequency is adjustable from 330kHz to 2.2MHz, allowing designers to optimize the converter for size, efficiency, and performance.
• Internal Soft-Start: The built-in soft-start function limits inrush current during startup, enhancing the reliability and longevity of the device.
• Thermal Shutdown: The LT3466EFE#TRPBF is equipped with thermal shutdown protection to prevent damage from overheating, ensuring safe operation under a wide range of conditions.

Applications

The versatility and high performance of the LT3466EFE#TRPBF make it an excellent choice for a broad spectrum of applications, including:

• LED Backlighting for LCD Displays
• Portable Lighting
• Automotive and Avionic Lighting
• General Purpose LED Illumination

Overall, the LT3466EFE#TRPBF from Analog Devices Inc. is a robust and efficient solution for driving LEDs in a wide array of lighting applications. Its dual-channel capability, adjustable parameters, and protection features provide designers with the flexibility and reliability required to create innovative lighting solutions.
