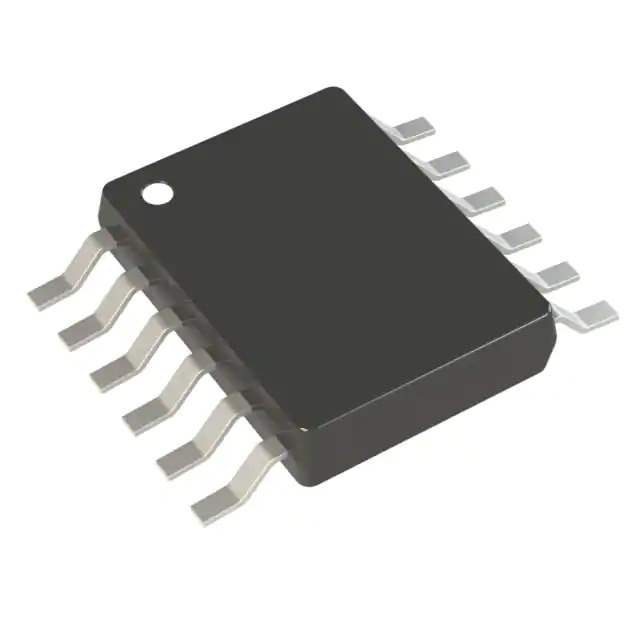

Introducing the LT3686AIMSE#TRPBF from Analog Devices Inc.

The LT3686AIMSE#TRPBF is a high-performance, step-down switching regulator that is part of Analog Devices' extensive portfolio of power management solutions. This compact and efficient module offers a versatile power solution for a wide range of applications, including automotive, industrial, and portable devices. Its robust design ensures reliable operation even in harsh environments, making it an ideal choice for designers looking for a dependable power source.

Key Features

• Adjustable Operating Frequency: The LT3686AIMSE#TRPBF allows users to set the switching frequency anywhere from 300kHz to 2.2MHz, providing flexibility to optimize for efficiency or component size.
• Wide Input Voltage Range: With an input voltage range of 3.6V to 36V, this regulator is compatible with a variety of supply voltages, accommodating fluctuating inputs and battery-powered applications.
• Robust Output Voltage: The device delivers a stable output voltage that can be adjusted from 0.8V up to 20V, catering to a broad spectrum of power requirements.
• Integrated Catch Diode: The LT3686AIMSE#TRPBF features an internal catch diode, which simplifies the circuit design and reduces external component count.
• High Efficiency: Thanks to its advanced design, the regulator offers high efficiencies, which can reach up to 92%, minimizing heat generation and power loss.
• Thermal Protection: It includes thermal shutdown protection, safeguarding the device against overheating and ensuring long-term reliability.
• Stable with Ceramic Capacitors: The use of low ESR ceramic capacitors results in stable operation, making it suitable for sensitive electronic applications.

Applications

The LT3686AIMSE#TRPBF's robustness and versatility make it an excellent choice for a wide array of applications, including:

• Automotive electronics
• Telecommunications infrastructure
• Industrial control systems
• Portable battery-powered devices
• Distributed power systems

With its combination of performance, efficiency, and reliability, the LT3686AIMSE#TRPBF from Analog Devices Inc. stands out as a top-tier power management solution for designers aiming to optimize their systems for performance and longevity.
