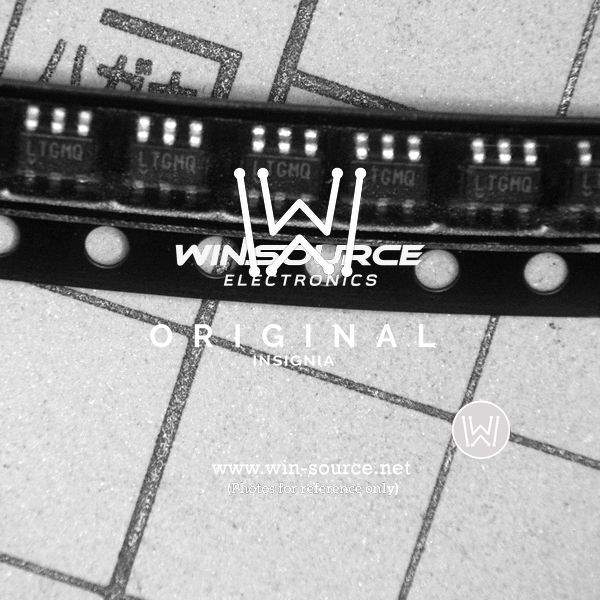

Analog Devices Inc. LT8330IS6#TRMPBF - High Efficiency, Low Quiescent Current Boost/SEPIC/Inverter DC/DC Converter

The LT8330IS6#TRMPBF is a versatile and compact DC/DC converter from Analog Devices Inc., designed to cater to a broad range of power supply applications. It is a high-performance solution that can be configured as a boost, SEPIC (Single-Ended Primary-Inductor Converter), or inverting converter, providing design flexibility for engineers and product developers.

This converter IC operates over a wide input voltage range from 3V to 40V, making it suitable for applications that experience wide variations in input supply, such as automotive and industrial systems. It is also a perfect choice for battery-powered devices where efficient power conversion is essential to maximize battery life. Its low quiescent current of only 9µA ensures minimal power drain when the device is in standby mode.

The LT8330IS6#TRMPBF utilizes a fixed 2MHz switching frequency, which allows the use of small, low-cost, and low-profile external components. This high switching frequency also enables fast transient response and reduces output voltage ripple, which is crucial for noise-sensitive applications. The device's internal 1A, 60V power switch provides the ability to deliver high power outputs with ease.

With a wide temperature range of -40°C to 125°C, the LT8330IS6#TRMPBF is designed to perform reliably in harsh environments. Its thermally efficient SOT-23 package ensures that the device can handle high power levels without overheating. Additionally, the converter features several built-in protection mechanisms, including a soft-start function to limit inrush current during startup, and thermal shutdown to protect against overheating.

Key features of the LT8330IS6#TRMPBF include its robust fault protection capabilities, such as overvoltage protection and short-circuit protection, which safeguard the device and the application against abnormal operating conditions. Its low ripple Burst Mode operation maintains high efficiency at low output currents, further extending battery life for portable applications.

Overall, the LT8330IS6#TRMPBF from Analog Devices Inc. is an efficient and reliable choice for designers looking for a compact, high-performance DC/DC converter for their power supply needs.
