LT8645SEV#PBF

Part No LT8645SEV#PBF
Manufacturer Analog Devices Inc.
Description IC REG BUCK ADJUSTABLE 8A 32LQFN
Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $5.9117 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
7+
$8.1250
$56.875
15+
$6.6670
$100.005
24+
$6.4590
$155.016
32+
$6.2500
$200.000
42+
$6.0420
$253.764
56+
$5.4170
$303.352
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 10,011 pieces
MOQ: 7 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate

*

Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Analog Devices Inc.
Series Silent Switcher®2
Package Tray
Product Status Active
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 3.4V
Voltage - Input (Max) 65V
Voltage - Output (Min/Fixed) 0.97V
Voltage - Output (Max) 12V
Current - Output 8A
Frequency - Switching 200kHz ~ 2.2MHz
Synchronous Rectifier Yes
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 32-TFQFN Exposed Pad
Supplier Device Package 32-LQFN (6x4)
Base Product Number LT8645
Standard Package 490 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 844036-LT8645SEV#PBF
Fake Threat In the Open Market 48pct.

Description

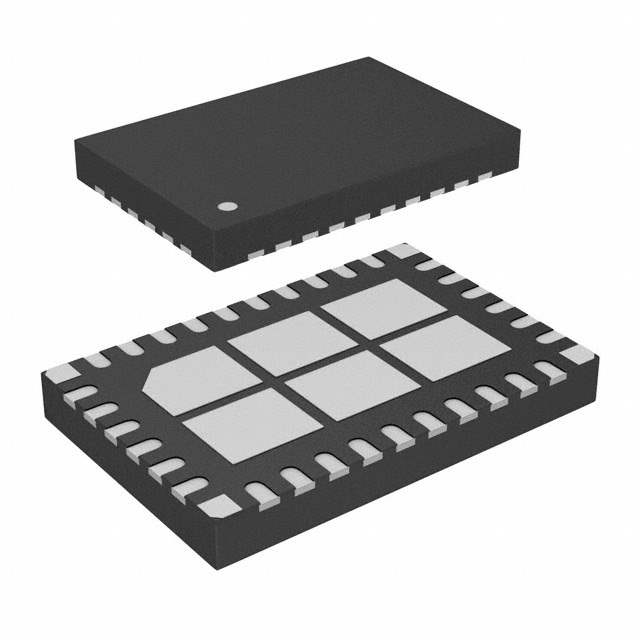

Image of LT8645SEV#PBF

The LT8645SEV#PBF is a high-performance, synchronous step-down regulator from Analog Devices Inc., that boasts a wide input voltage range and the ability to deliver a continuous output current up to 8.5A. This cutting-edge component is designed to maintain a low electromagnetic emission and reduced noise, making it an ideal choice for sensitive applications where efficiency and reliability are crucial.

Key Features

  • Wide Input Voltage Range: Capable of operating with an input voltage range from 3.4V to 65V, the LT8645SEV#PBF accommodates a variety of supply voltages, ensuring versatility across different applications.
  • High Efficiency: With its synchronous rectification, the device is able to achieve up to 94% efficiency, reducing power loss and improving system performance.
  • Low EMI/EMC Emissions: It features Silent Switcher® technology to minimize electromagnetic interference, making it suitable for noise-sensitive applications without compromising performance.
  • Fast Minimum On-Time: The device can support high frequency switching that allows for a very low minimum on-time, making it ideal for high step-down ratio applications that require a small footprint and fast transient response.
  • Thermal Performance: The LT8645SEV#PBF is available in a high thermal performance 4mm x 6mm LQFN package, which aids in heat dissipation for reliable operation even at full load.

Applications

This regulator is well-suited for a wide range of applications, including but not limited to:

  • Automotive and industrial power supplies
  • General purpose point of load (POL) regulation
  • Telecommunications infrastructure
  • Datacom and storage systems
  • Medical and healthcare equipment

The LT8645SEV#PBF from Analog Devices Inc. represents a blend of high efficiency, robust performance, and low noise operation, making it a top-tier solution for demanding power regulation requirements across various industries.
