Analog Devices Inc. LTC2367IDE-16#PBF Overview

The LTC2367IDE-16#PBF is a high-performance, 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) from Analog Devices Inc., designed to deliver exceptional accuracy and speed for a wide range of applications. This precision ADC offers a maximum sampling rate of 5Msps, making it an ideal choice for data acquisition systems, medical instruments, and industrial control applications where fast and accurate signal processing is crucial.

Key Features

• High Resolution: With 16-bit resolution, the LTC2367IDE-16#PBF provides highly detailed digital representations of analog signals, ensuring minimal quantization error and excellent dynamic range.
• Fast Sampling Rate: The device's 5Msps sampling rate allows for rapid data acquisition, which is essential for capturing transient signals and for applications requiring real-time processing.
• Low Power Consumption: It is designed for power-sensitive applications, consuming only 13mW at the full 5Msps rate, which drops to 1.5mW in nap mode, making it an energy-efficient choice for portable and battery-operated devices.
• No Pipeline Delay: The SAR architecture ensures that the LTC2367IDE-16#PBF has no pipeline delay, which simplifies the signal processing and control algorithms.
• Wide Input Range: The ADC supports a pseudo-differential unipolar input range of 0V to VREF, with VREF ranging up to 5V, providing flexibility in various system designs.

Robust Design and Packaging

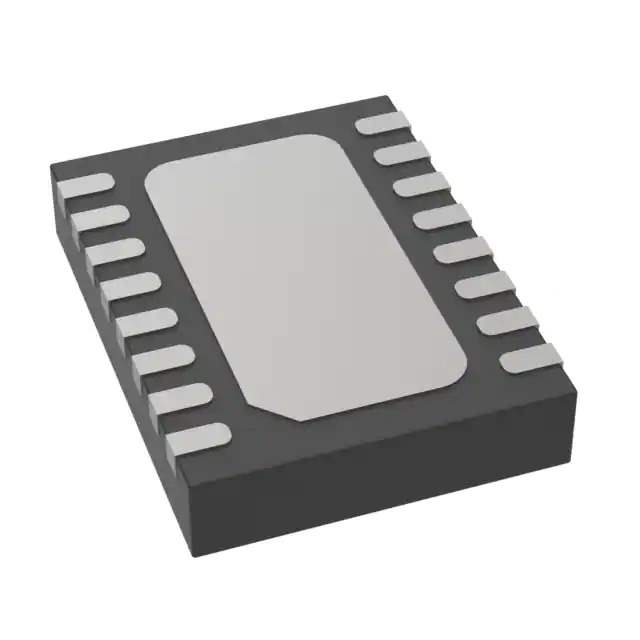

The LTC2367IDE-16#PBF is encapsulated in a 14-lead DFN package (4mm x 3mm) with a guaranteed operating temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments. Its small footprint and temperature resilience make it suitable for space-constrained and temperature-critical applications.

Easy Integration

Integration with microcontrollers and digital signal processors is made easy through its SPI-compatible serial interface. The LTC2367IDE-16#PBF also includes a separate convert start signal (CNV) and a data ready signal (BUSY), allowing for precise control over the conversion timing and straightforward interfacing with digital systems.

Applications

The ADC's exceptional performance characteristics make it well-suited for a variety of applications, including:

• High-speed data acquisition systems
• Medical imaging and diagnostics
• Industrial process control and automation
• Instrumentation and test equipment
• Communications systems

With its combination of high-speed, precision, and low-power operation, the LTC2367IDE-16#PBF from Analog Devices Inc. is an excellent choice for designers seeking to enhance the performance and efficiency of their electronic systems.
